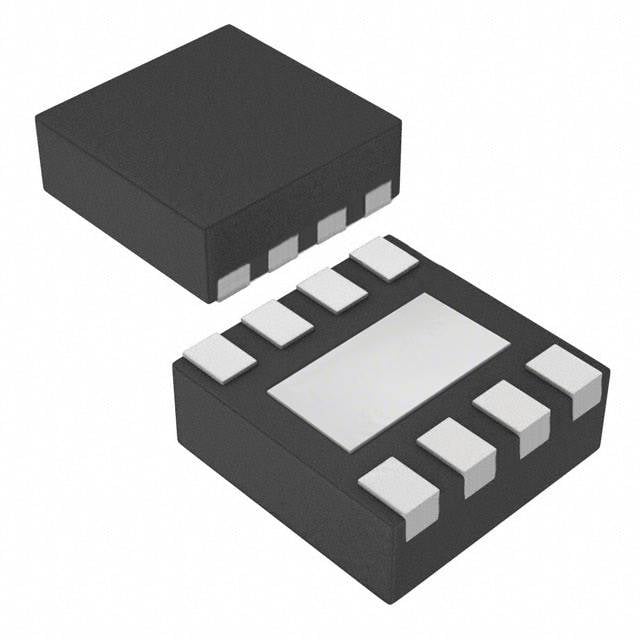

TLV1117-18IDRJR TI LDO Regulator | 8-SON(4x4) | 1.8V Fixed Output, 800mA

Product Overview

The TLV1117-18IDRJR is a low-dropout (LDO) linear voltage regulator from Texas Instruments, offering a fixed output voltage of 1.8V with an output current capability of up to 800mA. Housed in a compact 8-SON (4x4 mm) package, this device is designed for space-constrained applications requiring efficient power management. With a low dropout voltage of typically 1.1V at full load, it ensures stable operation even when the input voltage is close to the output. The TLV1117-18IDRJR integrates current limiting and thermal shutdown protection, making it a reliable choice for various electronic systems.

Detailed Technical Specifications

Key Features

• Fixed 1.8V output voltage with high accuracy
• Low dropout voltage: 1.1V typical at 800mA
• Output current up to 800mA
• Wide input voltage range: 2.5V to 15V
• Built-in current limiting and thermal shutdown
• Stable with low ESR output capacitors (10µF tantalum)
• Compact 8-SON package for space-saving designs

Target Applications

• 5G base station power management modules
• Automotive dashboard displays and infotainment systems
• Industrial control systems and PLCs
• Portable battery-powered devices
• Networking equipment such as routers and switches
• Medical devices requiring stable low-voltage rails

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLV1117-18IDRJR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TLV1117-18IDRJR 是德州儀器（TI）推出的一款低壓差線性穩壓器（LDO），提供固定的1.8V輸出電壓，最大輸出電流可達800mA。該器件採用緊湊的8-SON（4x4 mm）封裝，適用於空間受限且需要高效電源管理的應用。在滿載條件下，其典型壓差僅為1.1V，確保在輸入電壓接近輸出時仍能穩定工作。TLV1117-18IDRJR 集成了電流限制和熱關斷保護功能，是各種電子系統的可靠選擇。

詳細技術參數

核心特性

• 固定1.8V輸出電壓，精度高
• 低壓差：典型值1.1V（800mA時）
• 輸出電流高達800mA
• 寬輸入電壓範圍：2.5V至15V
• 內置電流限制和熱關斷保護
• 可使用低ESR輸出電容（10µF鉭電容）穩定工作
• 緊湊的8-SON封裝，節省空間

典型應用場景

• 5G基站電源管理模塊
• 汽車儀表盤顯示和信息娛樂系統
• 工業控制系統和PLC
• 便攜式電池供電設備
• 網絡設備，如路由器和交換機
• 需要穩定低電壓軌的醫療設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TLV1117-18IDRJR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
