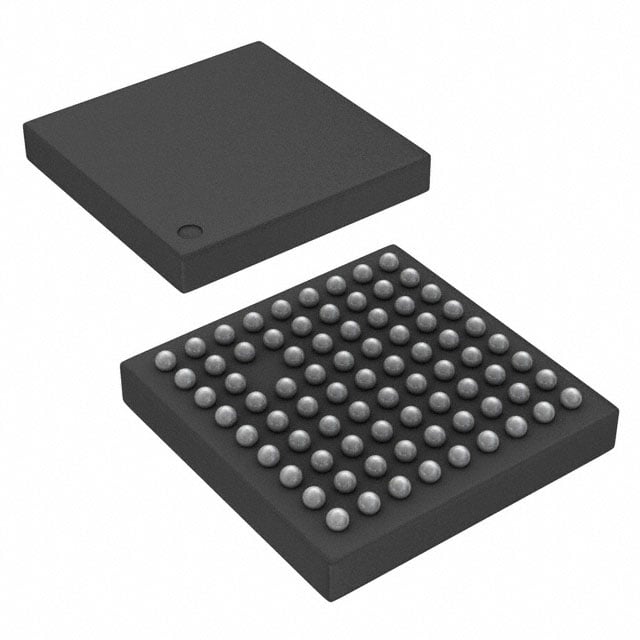

TLV320DAC23IGQE TI Audio DAC | 80-BGAMICROSTARJUNIOR（5X5） | 96kHz, 24-Bit

Product Overview

The TLV320DAC23IGQE is a high-performance stereo audio digital-to-analog converter (DAC) from Texas Instruments, designed for portable and high-fidelity audio applications. It features a 24-bit delta-sigma architecture with sampling rates up to 96 kHz, delivering excellent dynamic range and low distortion. The device integrates a headphone amplifier, programmable gain control, and multiple digital audio interfaces, making it ideal for consumer electronics, automotive infotainment, and professional audio equipment.

Detailed Technical Specifications

Key Features

• High-performance 24-bit stereo DAC with 100 dB dynamic range
• Low power consumption: 18 mW during playback
• Integrated headphone amplifier with programmable gain
• Multiple digital audio interfaces: I2S, Left-Justified, DSP, TDM
• Programmable sample rates from 8 kHz to 96 kHz
• Compact 80-ball BGA package (5x5 mm) for space-constrained designs
• On-chip digital interpolation filter with stop-band attenuation > 60 dB
• Software control via I2C or SPI interface

Target Applications

• Portable audio players (e.g., iPod, smartphone audio docks)
• Automotive infotainment systems (e.g., dashboard audio, rear-seat entertainment)
• Professional audio equipment (e.g., digital mixing consoles, audio interfaces)
• Home theater systems and soundbars
• 5G base station audio monitoring (e.g., remote radio unit audio)
• Industrial audio systems (e.g., public address, intercom)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLV320DAC23IGQE. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TLV320DAC23IGQE 是德州儀器（TI）推出的一款高性能立體聲音頻數模轉換器（DAC），專為便攜式和高保真音頻應用設計。它採用 24 位 Δ-Σ 架構，支持高達 96 kHz 的採樣率，具有出色的動態範圍和低失真。該器件集成了耳機放大器、可編程增益控制和多種數字音頻接口，非常適合消費電子、汽車信息娛樂和專業音頻設備。

詳細技術參數

核心特性

• 高性能 24 位立體聲 DAC，動態範圍 100 dB
• 低功耗：播放模式下僅 18 mW
• 集成耳機放大器，支持可編程增益
• 多種數字音頻接口：I2S、左對齊、DSP、TDM
• 可編程採樣率：8 kHz 至 96 kHz
• 緊湊型 80 球 BGA 封裝（5x5 mm），適合空間受限設計
• 片內數字插值濾波器，阻帶衰減 > 60 dB
• 通過 I2C 或 SPI 接口進行軟件控制

典型應用場景

• 便攜式音頻播放器（例如 iPod、智能手機音頻底座）
• 汽車信息娛樂系統（例如儀表板音頻、後座娛樂）
• 專業音頻設備（例如數字調音台、音頻接口）
• 家庭影院系統和條形音箱
• 5G 基站音頻監控（例如遠程射頻單元音頻）
• 工業音頻系統（例如公共廣播、對講機）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TLV320DAC23IGQE 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
