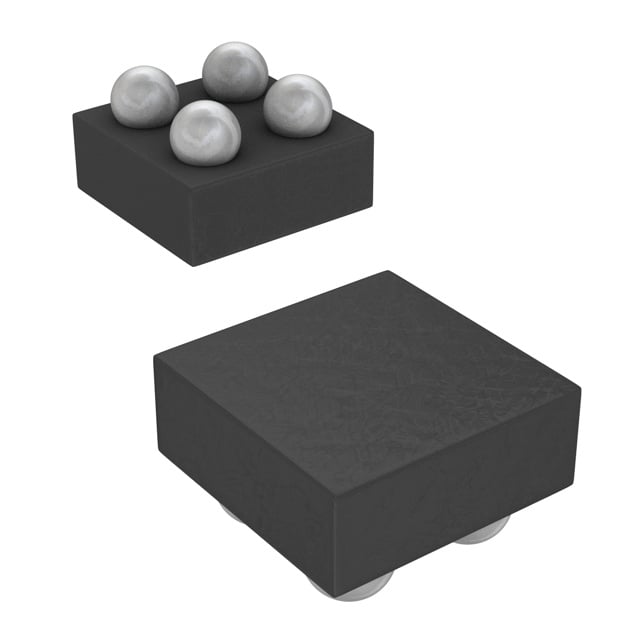

TLV705165YFPT TI LDO Regulator | 4-DSBGA | 1.65V Output, 200mA

Product Overview

The TLV705165YFPT from Texas Instruments is a low-dropout (LDO) linear voltage regulator designed for space-constrained applications. It delivers a fixed output voltage of 1.65V with a maximum output current of 200mA. Housed in a compact 4-pin DSBGA (YFP) package, it offers excellent line and load regulation while maintaining low quiescent current. This device is ideal for battery-powered and portable electronics where efficiency and small footprint are critical.

Detailed Technical Specifications

Key Features

• Fixed 1.65V output with ±2% accuracy
• Low dropout voltage: 200mV at full load
• Ultra-low quiescent current: 25µA (typical)
• High PSRR: 60dB at 1kHz
• Low output noise: 30µVrms
• Stable with ceramic capacitors (1µF)
• Overcurrent and thermal protection
• Small 4-DSBGA package (0.8mm x 0.8mm)

Target Applications

• 5G base station power management (e.g., supplying 1.65V to FPGA core)
• Automotive dashboard displays (e.g., powering infotainment processors)
• Portable medical devices (e.g., glucose meters, pulse oximeters)
• Wearable electronics (e.g., smartwatches, fitness trackers)
• IoT sensor nodes (e.g., wireless temperature sensors)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLV705165YFPT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TLV705165YFPT 是德州儀器（TI）推出的一款低壓差線性穩壓器（LDO），專為空間受限的應用設計。它提供固定的 1.65V 輸出電壓，最大輸出電流為 200mA。採用緊湊的 4 引腳 DSBGA（YFP）封裝，具有優異的線性和負載調節能力，同時保持低靜態電流。該器件非常適合電池供電和便攜式電子設備，在這些應用中，效率和佔板面積至關重要。

詳細技術參數

核心特性

• 固定 1.65V 輸出，精度 ±2%
• 低壓差電壓：滿載時 200mV
• 超低靜態電流：典型值 25µA
• 高 PSRR：1kHz 時 60dB
• 低輸出噪聲：30µVrms
• 可使用陶瓷電容（1µF）穩定工作
• 過流和過熱保護
• 小型 4-DSBGA 封裝（0.8mm x 0.8mm）

典型應用場景

• 5G 基站電源管理（例如為 FPGA 內核提供 1.65V）
• 汽車儀表板顯示（例如為信息娛樂處理器供電）
• 便攜式醫療設備（例如血糖儀、脈搏血氧儀）
• 可穿戴電子設備（例如智能手錶、健身追蹤器）
• IoT 傳感器節點（例如無線溫度傳感器）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TLV705165YFPT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
