TLV803EA29DPWR TI Supervisory Circuit | 5-X2SON (0.8x0.8) | 2.93V Threshold, Active-Low Reset

Product Overview

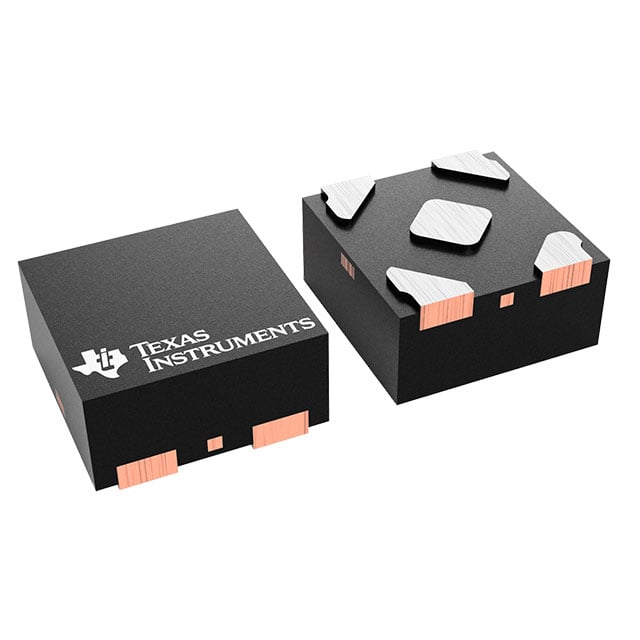

The TLV803EA29DPWR from Texas Instruments is a supervisory circuit (reset IC) designed to monitor power supply voltages in digital systems. It provides a reset signal to the host processor or logic during power-up, power-down, and brown-out conditions. The device features a fixed threshold voltage of 2.93V (typical) and an active-low, open-drain reset output. Housed in a compact 5-pin X2SON package measuring 0.8mm x 0.8mm, it is ideal for space-constrained applications. The TLV803EA29DPWR operates over a wide supply voltage range of 0.7V to 5.5V and consumes ultra-low quiescent current of 0.9µA (typical), making it suitable for battery-powered and portable devices.

Detailed Technical Specifications

Key Features

• Ultra-low power consumption: 0.9µA typical quiescent current
• Precision voltage monitoring with 2.93V threshold
• Open-drain active-low reset output
• 200ms fixed reset timeout delay
• Wide supply voltage range: 0.7V to 5.5V
• Small footprint: 5-pin X2SON package (0.8mm x 0.8mm)
• Operating temperature: -40°C to +125°C
• No external components required

Target Applications

• 5G base station power management
• Automotive dashboard and infotainment systems
• Portable and battery-powered devices (e.g., IoT sensors, wearables)
• Industrial control systems (e.g., PLCs, motor drives)
• Medical devices (e.g., patient monitors, glucose meters)
• Smart home devices (e.g., smart thermostats, security cameras)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLV803EA29DPWR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
