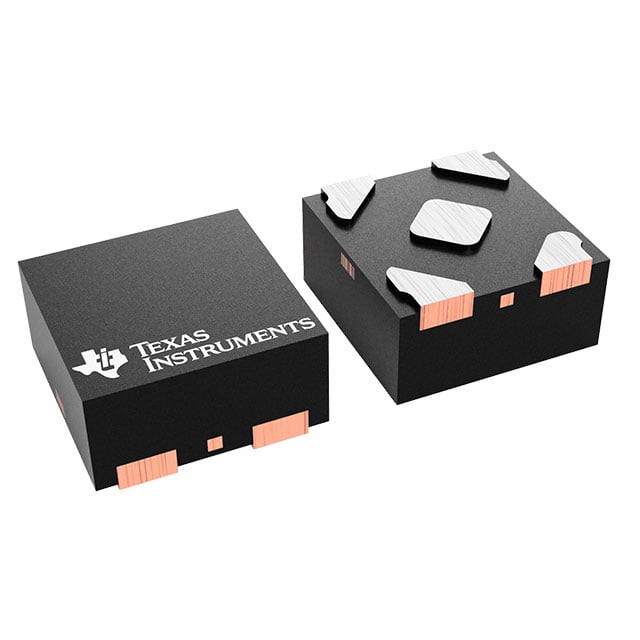

TLV803ED18DPWR TI Supervisory Circuit | 5-X2SON (0.8x0.8) | 1.8V Threshold, Active-Low Reset

Product Overview

The TLV803ED18DPWR from Texas Instruments is a supervisory circuit designed to monitor power supplies in digital systems. It provides a reset output to the microprocessor during power-up, power-down, and brown-out conditions. The device operates with a supply voltage of 1.8V and features an active-low, open-drain reset output. Housed in a compact 5-pin X2SON package (0.8mm x 0.8mm), it is ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Precision voltage monitoring with 1.8V threshold
• Low quiescent current of 0.9µA
• Open-drain reset output with internal pull-up resistor
• 200ms reset timeout delay
• Ultra-small 5-pin X2SON package (0.8mm x 0.8mm)
• Wide operating temperature range

Target Applications

• 5G base station power management
• Automotive dashboard systems
• Portable and battery-powered devices
• Industrial sensors and controllers
• IoT modules

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLV803ED18DPWR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TLV803ED18DPWR 是德州儀器（TI）推出的電源監控電路，專為監控數位系統中的電源而設計。它在系統上電、掉電和電壓驟降時為微處理器提供復位輸出。該器件工作電壓為1.8V，具有低電平有效、開漏輸出的復位信號。採用緊湊的5引腳X2SON封裝（0.8mm x 0.8mm），非常適合空間受限的應用。

詳細技術參數

核心特性

• 精確電壓監控，閾值1.8V
• 低靜態電流0.9µA
• 開漏復位輸出，內置上拉電阻
• 200ms復位超時延遲
• 超小型5引腳X2SON封裝（0.8mm x 0.8mm）
• 寬工作溫度範圍

典型應用場景

• 5G基站電源管理
• 汽車儀表板系統
• 便攜式和電池供電設備
• 工業傳感器和控制器
• 物聯網模塊

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TLV803ED18DPWR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
