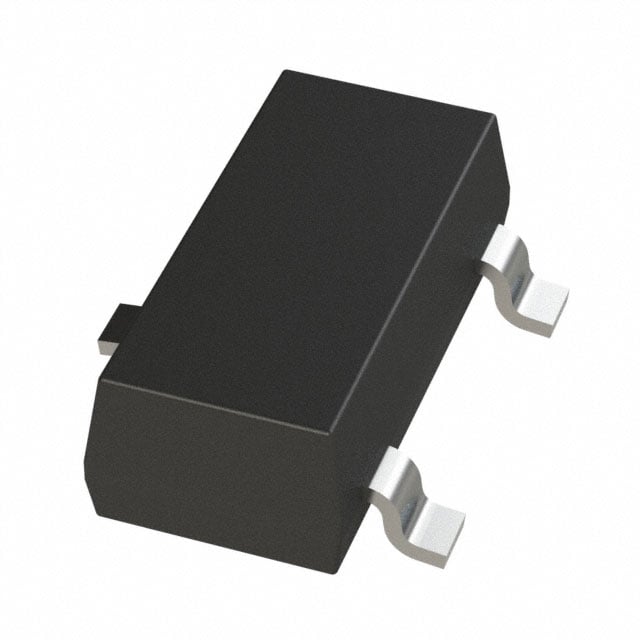

TLV809EC46DBZR TI Supervisor IC | SOT-23-3 | 4.63V Threshold, Active-Low Reset

Product Overview

The TLV809EC46DBZR is a supervisory circuit from Texas Instruments designed to monitor power supplies in digital systems. It provides a reset output to the microprocessor during power-up, power-down, and brown-out conditions. The device operates over a wide supply voltage range and features a fixed threshold voltage of 4.63V. The reset output is active-low and remains asserted for a minimum of 140ms after the supply voltage exceeds the threshold, ensuring proper system initialization. Housed in a compact SOT-23-3 package, it is ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Precision voltage monitoring with 4.63V threshold
• Low power consumption: 9µA typical quiescent current
• 140ms minimum reset delay ensures reliable system startup
• Open-drain reset output allows wired-OR connection
• Wide supply voltage range: 1.1V to 5.5V
• Small SOT-23-3 package for space-saving designs
• Temperature range: -40°C to +125°C

Target Applications

• 5G base station power supply monitoring
• Automotive dashboard and infotainment systems
• Industrial control systems (PLCs, motor drives)
• Portable battery-powered devices
• Medical equipment (patient monitors, infusion pumps)
• Networking equipment (routers, switches)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLV809EC46DBZR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
