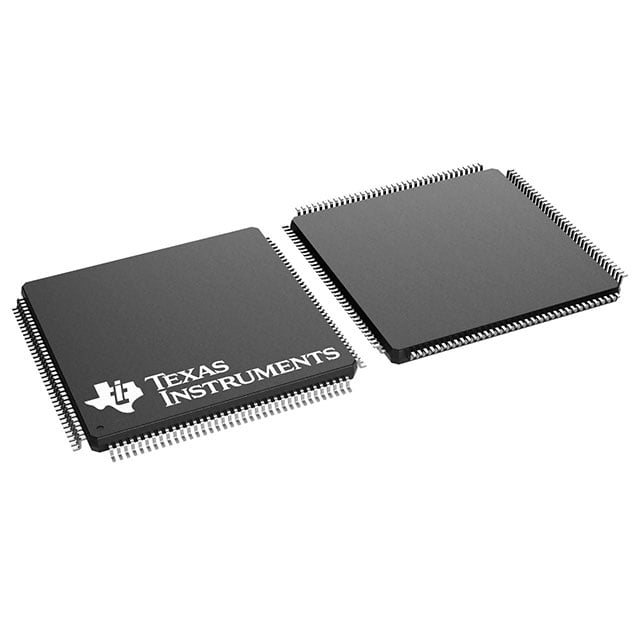

TM4C1233H6PGEIR TI ARM Cortex-M4 MCU | 144-LQFP (20x20) | 256KB Flash, 32KB SRAM

Product Overview

The TM4C1233H6PGEIR is a high-performance 32-bit ARM Cortex-M4F microcontroller from Texas Instruments, part of the Tiva C Series. It features a floating-point unit (FPU) for efficient digital signal processing, 256KB of flash memory, and 32KB of SRAM. The device operates at up to 80 MHz and is housed in a 144-pin LQFP package (20x20 mm). It offers a rich set of peripherals including multiple UART, I2C, SPI, USB, CAN, and analog interfaces, making it suitable for a wide range of embedded control applications.

Detailed Technical Specifications

Key Features

• ARM Cortex-M4F core with single-precision FPU for efficient DSP and floating-point operations.
• 256KB on-chip flash and 32KB SRAM with ROM-based boot loader.
• Advanced serial communication interfaces: USB 2.0 OTG, CAN 2.0, UART, I2C, and SPI.
• Two 12-bit ADCs with up to 12 analog inputs, sample rate up to 1 MSPS.
• 16 PWM outputs for motor control and power conversion.
• 32-channel DMA controller for high-throughput data transfers.
• Integrated temperature sensor and analog comparator.
• Low-power modes: Sleep, Deep-sleep, and Hibernate with battery-backed SRAM.
• Industrial temperature range (-40°C to +85°C).

Target Applications

• Industrial automation: PLC controllers, motor drives, and robotic arms.
• Building automation: HVAC controllers, lighting systems, and access control panels.
• Medical devices: Patient monitoring systems, infusion pumps, and diagnostic equipment.
• Consumer electronics: Smart home hubs, wearable devices, and gaming peripherals.
• Automotive: Dashboard displays, telematics units, and body control modules.
• Communication infrastructure: 5G base station control boards, network switches, and routers.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TM4C1233H6PGEIR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
