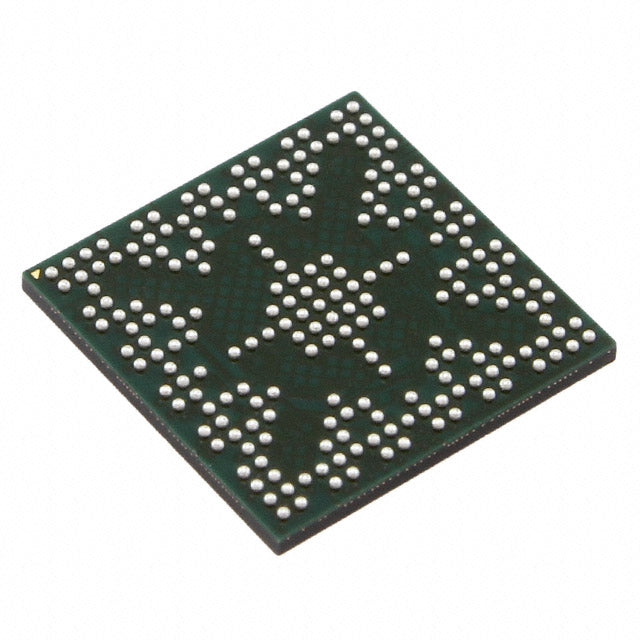

TM4C1290NCZADI3R TI MCU | 212-NFBGA(10x10) | 120MHz ARM Cortex-M4, 1MB Flash

Product Overview

The TM4C1290NCZADI3R is a high-performance 32-bit ARM Cortex-M4F microcontroller from Texas Instruments, designed for demanding embedded applications. It features a 120 MHz CPU with floating-point unit, 1 MB of flash memory, and 256 KB of SRAM. The device is housed in a compact 212-ball NFBGA (10x10 mm) package, making it suitable for space-constrained designs. With integrated Ethernet MAC+PHY, USB 2.0, and multiple serial interfaces, it provides robust connectivity for industrial and IoT applications.

Detailed Technical Specifications

Key Features

• High-performance ARM Cortex-M4F core with DSP instructions and floating-point unit for efficient signal processing.
• Integrated 10/100 Ethernet MAC+PHY with IEEE 1588 PTP support for precise time synchronization.
• Large on-chip memory: 1 MB flash and 256 KB SRAM, with external memory interface for expansion.
• Advanced security features including AES, DES, SHA, and CRC accelerators.
• Multiple low-power modes for energy-sensitive applications.
• Rich peripheral set: USB 2.0, CAN, UART, I2C, SPI, QEI, and PWM.
• Industrial temperature range and robust ESD protection.

Target Applications

• Industrial automation: PLCs, motor drives, and factory gateways.
• Building automation: HVAC controllers, lighting systems, and access control panels.
• Smart grid: Energy meters, power quality monitors, and substation automation.
• IoT gateways: 5G base station controllers, edge computing nodes.
• Medical devices: Patient monitors, infusion pumps, and diagnostic equipment.
• Automotive: Dashboard controllers, telematics units, and infotainment systems.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TM4C1290NCZADI3R. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TM4C1290NCZADI3R 是德州儀器推出的一款高性能 32 位 ARM Cortex-M4F 微控制器，專為要求嚴苛的嵌入式應用設計。它配備 120 MHz CPU（含浮點運算單元）、1 MB 快閃記憶體和 256 KB SRAM，採用緊湊的 212 球 NFBGA（10x10 mm）封裝，適合空間受限的設計。集成乙太網路 MAC+PHY、USB 2.0 和多種串列介面，為工業和物聯網應用提供強大的連接能力。

詳細技術參數

核心特性

• 高性能 ARM Cortex-M4F 核心，具備 DSP 指令和浮點運算單元，實現高效信號處理。
• 集成 10/100 乙太網路 MAC+PHY，支援 IEEE 1588 PTP 精確時間同步。
• 大容量片上記憶體：1 MB 快閃記憶體和 256 KB SRAM，並提供外部記憶體介面擴展。
• 先進安全功能：AES、DES、SHA 和 CRC 加速器。
• 多種低功耗模式，適用於節能應用。
• 豐富的周邊：USB 2.0、CAN、UART、I2C、SPI、QEI 和 PWM。
• 工業級溫度範圍和強大的 ESD 保護。

典型應用場景

• 工業自動化：PLC、馬達驅動器、工廠閘道。
• 建築自動化：HVAC 控制器、照明系統、門禁控制面板。
• 智慧電網：電能表、電能品質監測器、變電站自動化。
• 物聯網閘道：5G 基地台控制器、邊緣運算節點。
• 醫療設備：病人監護儀、輸液泵、診斷設備。
• 汽車：儀表板控制器、車載資訊娛樂系統、遠程資訊處理單元。

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TM4C1290NCZADI3R 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
