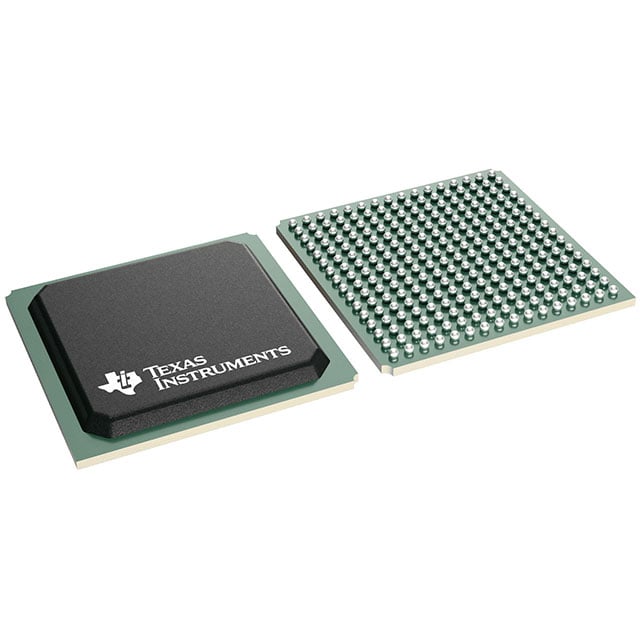

TMS320C28346ZFEQ TI DSP | 256-BGA (17x17) | 300MHz, 32-bit

Product Overview

The TMS320C28346ZFEQ is a high-performance 32-bit floating-point digital signal processor (DSP) from Texas Instruments, part of the C2000 Delfino series. It operates at up to 300 MHz, delivering 600 MFLOPS, and is designed for real-time control applications requiring high computational accuracy and speed. Housed in a 256-ball BGA package (17x17 mm), it integrates advanced peripherals including PWM, ADC, and communication interfaces, making it ideal for industrial, automotive, and renewable energy systems.

Detailed Technical Specifications

Key Features

• High-performance 32-bit floating-point DSP core at 300 MHz
• Integrated 512 KB flash and 164 KB RAM
• Advanced control peripherals: 18 PWM channels with high-resolution capability
• High-speed 12-bit ADC with 12.5 MSPS sample rate
• Multiple communication interfaces: CAN, SPI, SCI, I2C, McBSP
• Low-latency interrupt handling for real-time control
• Industrial temperature range (-40°C to +105°C)

Target Applications

• Industrial motor drives (e.g., servo drives, AC inverters)
• Renewable energy systems (e.g., solar inverters, wind turbine controllers)
• Automotive (e.g., electric vehicle traction control, battery management systems)
• Digital power supplies (e.g., server PSUs, telecom rectifiers)
• Robotics (e.g., industrial robot arms, collaborative robots)
• 5G base station power management
• Automotive dashboard and infotainment systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMS320C28346ZFEQ. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TMS320C28346ZFEQ 是德州儀器（TI）C2000 Delfino 系列中的一款高性能 32 位浮點數位訊號處理器（DSP），工作頻率高達 300 MHz，提供 600 MFLOPS 的運算能力，專為需要高精度和高速的即時控制應用而設計。採用 256 球 BGA 封裝（17x17 mm），整合了先進的周邊設備，包括 PWM、ADC 和通訊介面，適用於工業、汽車和可再生能源系統。

詳細技術參數

核心特性

• 高性能 32 位浮點 DSP 核心，頻率 300 MHz
• 整合 512 KB 快閃記憶體和 164 KB RAM
• 先進的控制周邊：18 個 PWM 通道，支援高解析度
• 高速 12 位 ADC，取樣率 12.5 MSPS
• 多種通訊介面：CAN、SPI、SCI、I2C、McBSP
• 低延遲中斷處理，適用於即時控制
• 工業級溫度範圍（-40°C 至 +105°C）

典型應用場景

• 工業馬達驅動（例如伺服驅動器、交流逆變器）
• 可再生能源系統（例如太陽能逆變器、風力發電控制器）
• 汽車電子（例如電動車牽引控制、電池管理系統）
• 數位電源（例如伺服器電源、電信整流器）
• 機器人（例如工業機器人手臂、協作機器人）
• 5G 基地台電源管理
• 汽車儀表板與資訊娛樂系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TMS320C28346ZFEQ 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
