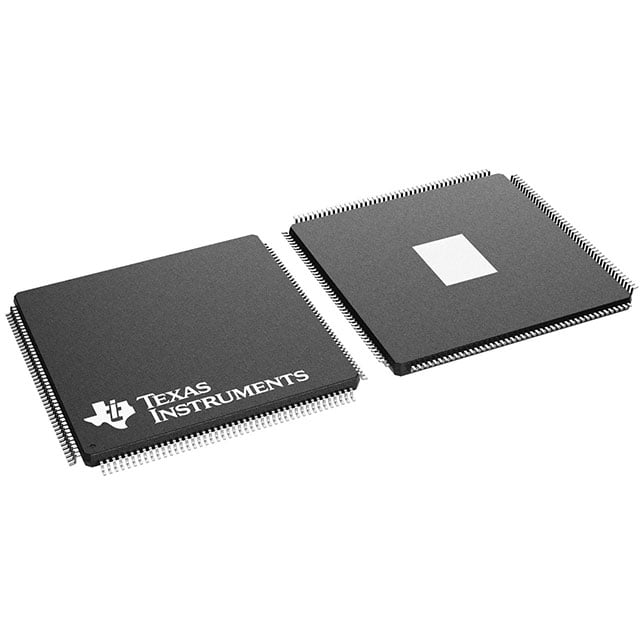

TMS320C6745DPTP4 TI DSP | 176-HLQFP (24x24) | 456MHz, 1 Core

Product Overview

The TMS320C6745DPTP4 is a high-performance fixed/floating-point digital signal processor (DSP) from Texas Instruments, part of the C674x generation. It combines the flexibility of a programmable DSP with the integration of a rich set of peripherals, making it ideal for real-time signal processing applications. Housed in a 176-pin HLQFP package (24x24 mm), this device operates at up to 456 MHz, delivering up to 3648 MIPS and 2746 MFLOPS. It features a single-core architecture with a 32-bit RISC processor and a 64-bit floating-point unit, enabling efficient execution of complex algorithms.

Detailed Technical Specifications

Key Features

• High-performance fixed/floating-point DSP core at 456 MHz
• Rich peripheral set including USB 2.0 OTG, Ethernet MAC, and multiple serial interfaces
• On-chip memory hierarchy with L1 and L2 caches for efficient data flow
• 64-channel EDMA for autonomous data transfers
• Low power consumption with multiple power-down modes
• Industrial temperature range support

Target Applications

• 5G base station digital front-end processing
• Automotive dashboard and infotainment systems
• Industrial motor control and servo drives
• Medical imaging (ultrasound, CT) signal processing
• Audio processing (professional mixers, active noise cancellation)
• Radar and sonar systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMS320C6745DPTP4. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TMS320C6745DPTP4 是德州儀器 (TI) 的一款高性能定點/浮點數字信號處理器 (DSP)，屬於 C674x 系列。它結合了可編程 DSP 的靈活性和豐富的外設集成，非常適合實時信號處理應用。該器件採用 176 引腳 HLQFP 封裝 (24x24 mm)，最高工作頻率為 456 MHz，可提供高達 3648 MIPS 和 2746 MFLOPS 的性能。它採用單核架構，配備 32 位 RISC 處理器和 64 位浮點單元，能夠高效執行複雜算法。

詳細技術參數

核心特性

• 高性能定點/浮點 DSP 核心，主頻 456 MHz
• 豐富的外設，包括 USB 2.0 OTG、以太網 MAC 和多種串行接口
• 片上存儲器層次結構，包含 L1 和 L2 緩存，實現高效數據流
• 64 通道 EDMA，支持自主數據傳輸
• 低功耗設計，支持多種省電模式
• 工業級溫度範圍支持

典型應用場景

• 5G 基站數字前端處理
• 汽車儀表盤和信息娛樂系統
• 工業電機控制和伺服驅動
• 醫療成像 (超聲、CT) 信號處理
• 音頻處理 (專業調音台、主動降噪)
• 雷達和聲納系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TMS320C6745DPTP4 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
