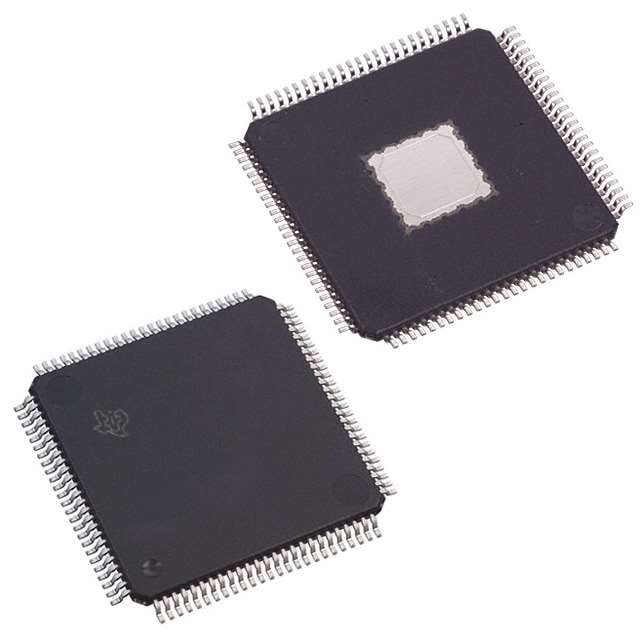

TMS320F28069UPZPS TI MCU | 100-HTQFP (14X14) | 90MHz, 256KB Flash

Product Overview

The TMS320F28069UPZPS is a high-performance 32-bit microcontroller from Texas Instruments' C2000 family, designed for real-time control applications. It features a C28x core with a floating-point unit (FPU) operating at up to 90 MHz, delivering 160 MIPS. The device integrates 256 KB of flash memory, 100 KB of SRAM, and a rich set of peripherals including PWM modules, ADCs, and communication interfaces. Housed in a 100-pin HTQFP package (14x14 mm), it is ideal for space-constrained industrial and automotive systems.

Detailed Technical Specifications

Key Features

• High-performance C28x core with FPU for efficient math-intensive control algorithms
• Up to 90 MHz operation with 160 MIPS
• 256 KB flash and 100 KB SRAM for complex applications
• Advanced PWM modules with high-resolution capability (150 ps)
• 12-bit ADC with up to 16 channels and fast conversion rate
• Multiple communication interfaces: CAN, SPI, I2C, SCI, McBSP
• Integrated analog comparators and DAC
• Low-power modes for energy-sensitive designs
• Industrial temperature range (-40°C to +125°C)

Target Applications

• Industrial motor drives (e.g., servo drives, variable frequency drives)
• Renewable energy systems (e.g., solar inverters, wind turbine controllers)
• Automotive systems (e.g., electric power steering, engine control units)
• Digital power supplies (e.g., server PSUs, telecom rectifiers)
• Robotics and CNC machines
• 5G base station power management
• Electric vehicle charging stations
• Smart grid and energy storage systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMS320F28069UPZPS. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TMS320F28069UPZPS 是德州儀器 C2000 系列的高性能 32 位微控制器，專為即時控制應用設計。它採用帶浮點運算單元 (FPU) 的 C28x 內核，工作頻率高達 90 MHz，提供 160 MIPS 的性能。該器件集成了 256 KB 快閃記憶體、100 KB SRAM 以及豐富的外設，包括 PWM 模組、ADC 和通訊介面。採用 100 引腳 HTQFP 封裝 (14x14 mm)，非常適合空間受限的工業和汽車系統。

詳細技術參數

核心特性

• 高性能 C28x 內核帶 FPU，高效處理數學密集型控制算法
• 最高 90 MHz 工作頻率，160 MIPS
• 256 KB 快閃和 100 KB SRAM，適用於複雜應用
• 先進 PWM 模組，具有高解析度能力 (150 ps)
• 12位 ADC，最多 16 通道，快速轉換速率
• 多種通訊介面：CAN, SPI, I2C, SCI, McBSP
• 集成模擬比較器和 DAC
• 低功耗模式，適用於節能設計
• 工業溫度範圍 (-40°C 至 +125°C)

典型應用場景

• 工業電機驅動（如伺服驅動器、變頻器）
• 可再生能源系統（如太陽能逆變器、風力發電控制器）
• 汽車系統（如電動助力轉向、發動機控制單元）
• 數字電源（如服務器電源、電信整流器）
• 機器人和數控機床
• 5G 基站電源管理
• 電動汽車充電樁
• 智能電網和儲能系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TMS320F28069UPZPS 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
