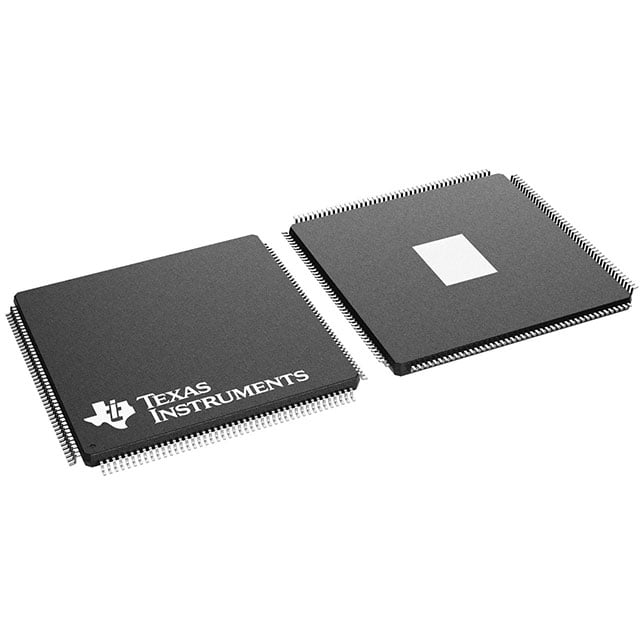

TMS320F28075PTPQ TI MCU | 176-HLQFP (24x24) | 512KB Flash, 200MHz C28x

Product Overview

The TMS320F28075PTPQ is a high-performance 32-bit microcontroller from Texas Instruments' C2000™ real-time control family. It features a C28x core with a floating-point unit (FPU) and a control law accelerator (CLA), operating at up to 200 MHz. This device is designed for advanced closed-loop control applications in industrial and automotive systems, offering high computational throughput and precise control capabilities. The package is a 176-pin HLQFP with a 24x24 mm footprint, providing ample I/O and connectivity options.

Detailed Technical Specifications

Key Features

• High-performance 32-bit C28x core with FPU and CLA for real-time control
• 512 KB flash and 100 KB SRAM for complex algorithms
• 24 high-resolution PWM outputs for precise motor control
• 16-channel 12-bit ADC with fast conversion rate
• Multiple communication interfaces including CAN, LIN, and USB
• Wide operating temperature range for harsh environments
• Integrated safety features for automotive and industrial applications

Target Applications

• Industrial motor drives (e.g., servo drives, AC induction motor drives)
• Automotive systems (e.g., electric power steering, engine control units)
• Renewable energy inverters (e.g., solar inverters, wind turbine controllers)
• 5G base station power management and control
• Digital power supplies (e.g., telecom rectifiers, server PSUs)
• Robotics and CNC machine control

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMS320F28075PTPQ. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TMS320F28075PTPQ 是德州儀器 C2000™ 實時控制系列中的一款高性能 32 位微控制器。它採用 C28x 內核，配備浮點運算單元 (FPU) 和控制律加速器 (CLA)，工作頻率高達 200 MHz。該器件專為工業和汽車系統中的高級閉環控制應用而設計，提供高計算吞吐量和精確控制能力。封裝為 176 引腳 HLQFP，尺寸 24x24 mm，提供豐富的 I/O 和連接選項。

詳細技術參數

核心特性

• 高性能 32 位 C28x 內核，配備 FPU 和 CLA，適用於實時控制
• 512 KB 閃存和 100 KB SRAM，支持複雜算法
• 24 路高分辨率 PWM 輸出，用於精確電機控制
• 16 通道 12 位 ADC，轉換速度快
• 多種通信接口，包括 CAN、LIN 和 USB
• 寬工作溫度範圍，適用於惡劣環境
• 集成安全特性，適用於汽車和工業應用

典型應用場景

• 工業電機驅動（例如伺服驅動、交流感應電機驅動）
• 汽車系統（例如電動助力轉向、發動機控制單元）
• 可再生能源逆變器（例如太陽能逆變器、風力發電控制器）
• 5G 基站電源管理與控制
• 數字電源（例如電信整流器、服務器電源）
• 機器人與 CNC 機床控制

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TMS320F28075PTPQ 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
