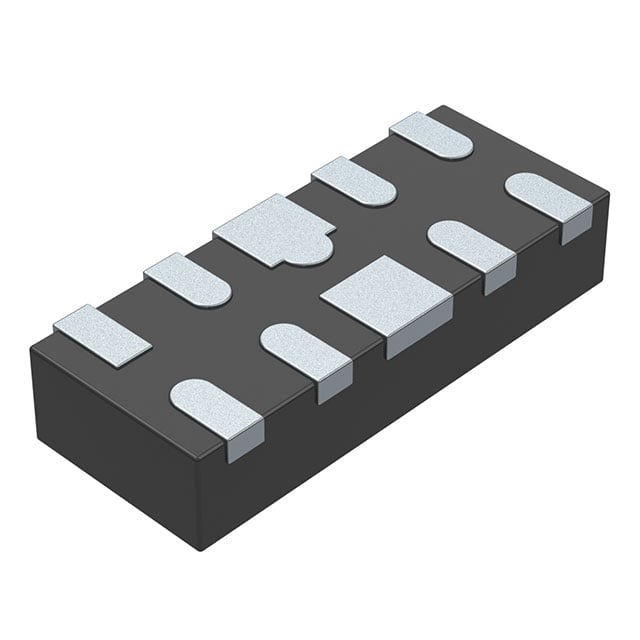

TMUX1104DQAR TI Analog Multiplexer | 10-USON (2.5x1) | 4:1, 1.08V-5.5V

Product Overview

The TMUX1104DQAR from Texas Instruments is a high-performance, 4:1 single-ended analog multiplexer designed for precision signal routing in space-constrained applications. Housed in a compact 10-USON (2.5x1 mm) package, it offers low on-resistance (2.5 Ω typical) and wide supply voltage range (1.08 V to 5.5 V), making it ideal for battery-powered and portable devices. The device features break-before-make switching to prevent signal glitches and supports bidirectional signal flow. With an operating temperature range of -40°C to +125°C, it is suitable for industrial and automotive environments.

Detailed Technical Specifications

Key Features

• Low on-resistance (2.5 Ω) minimizes signal attenuation
• Wide supply range supports 1.8V, 2.5V, 3.3V, and 5V systems
• Break-before-make switching prevents channel overlap
• High bandwidth (100 MHz) for analog and digital signals
• Ultra-low leakage (0.1 nA) preserves signal integrity
• Small 10-USON package saves PCB space
• Rail-to-rail operation for maximum dynamic range

Target Applications

• 5G base station: RF signal routing and antenna switching
• Automotive dashboard: Sensor signal multiplexing for temperature, pressure, and position
• Portable medical devices: ECG/EEG signal channel selection
• Industrial IoT: Analog sensor data acquisition from multiple transducers
• Consumer electronics: Audio source selection in smartphones and tablets

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMUX1104DQAR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TMUX1104DQAR 是德州儀器（TI）推出的一款高性能 4:1 單端模擬多路復用器，專為空間受限應用中的精密信號路由設計。採用緊湊的 10-USON（2.5x1 mm）封裝，具有低導通電阻（典型值 2.5 Ω）和寬電源電壓範圍（1.08 V 至 5.5 V），非常適合電池供電和便攜式設備。該器件採用先斷後合切換機制以防止信號毛刺，並支持雙向信號傳輸。工作溫度範圍為 -40°C 至 +125°C，適用於工業和汽車環境。

詳細技術參數

核心特性

• 低導通電阻（2.5 Ω）減少信號衰減
• 寬電源範圍支持 1.8V、2.5V、3.3V 和 5V 系統
• 先斷後合切換防止通道重疊
• 高帶寬（100 MHz）適用於模擬和數字信號
• 超低漏電流（0.1 nA）保持信號完整性
• 小型 10-USON 封裝節省 PCB 空間
• 軌到軌操作實現最大動態範圍

典型應用場景

• 5G 基站：射頻信號路由和天線切換
• 汽車儀表板：溫度、壓力和位置傳感器信號多路復用
• 便攜醫療設備：心電圖/腦電圖信號通道選擇
• 工業物聯網：多個傳感器的模擬數據採集
• 消費電子：智能手機和平板電腦的音頻源選擇

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TMUX1104DQAR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
