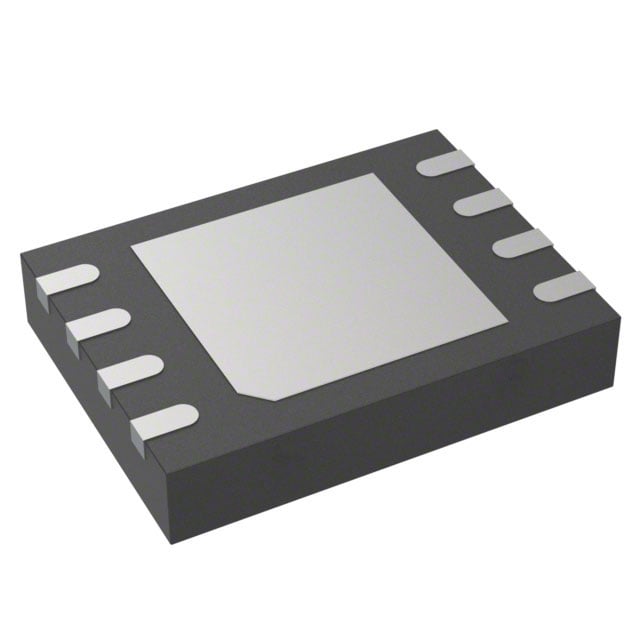

TMUX6201RQXR TI Analog Switch IC | 8-WSON (3X2) | 1.8V-5.5V, 2:1 SPDT

Product Overview

The TMUX6201RQXR from Texas Instruments is a high-performance, single-pole double-throw (SPDT) analog switch designed for precision signal routing in a wide range of applications. Housed in a compact 8-WSON (3x2 mm) package, this device offers low on-resistance (0.5 Ω typical), low leakage current, and wide operating voltage range from 1.8V to 5.5V. It supports bidirectional signal flow and is fully specified for both analog and digital signals, making it ideal for multiplexing, signal gating, and data acquisition systems.

Detailed Technical Specifications

Key Features

• Low on-resistance (0.5 Ω) minimizes signal attenuation
• Wide supply voltage range (1.8V to 5.5V) for flexible system integration
• High bandwidth (100 MHz) supports high-speed signals
• Low leakage current (0.1 nA) preserves signal integrity
• Fast switching times (35 ns tON) for real-time applications
• Break-before-make switching prevents signal contention
• Rail-to-rail signal handling
• Low power consumption (0.5 µA typical)
• Small 8-WSON package saves board space

Target Applications

• 5G base station: RF signal routing and antenna switching
• Automotive dashboard: Audio/video signal multiplexing
• Industrial automation: Sensor signal conditioning and data acquisition
• Medical devices: ECG/EEG signal switching
• Consumer electronics: Smartphone audio path selection
• Test and measurement: Automated test equipment (ATE) signal routing

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMUX6201RQXR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
