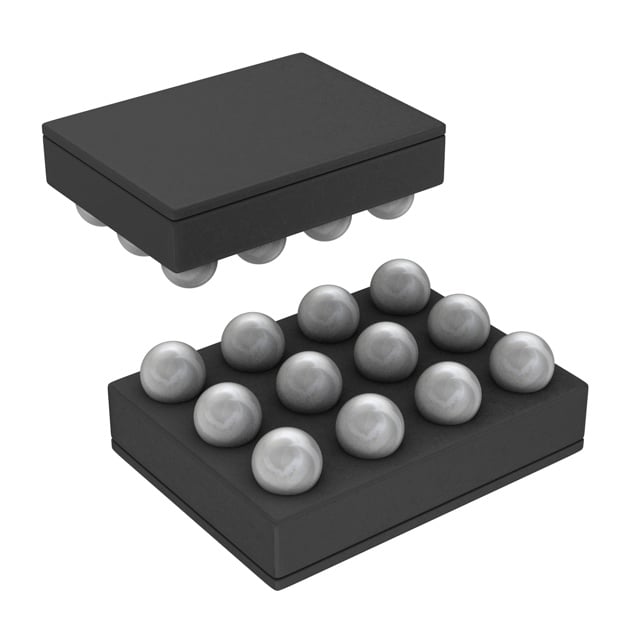

TPD1S514-1YZR TI USB ESD Protection | 12-DSBGA (2x2.5) | 1-Channel, 5.5V Clamp

Product Overview

The TPD1S514-1YZR from Texas Instruments is a single-channel USB ESD protection device designed to safeguard USB interfaces against electrostatic discharge (ESD) events. Housed in a compact 12-DSBGA (2x2.5 mm) package, it offers low clamping voltage and fast response time, making it ideal for high-speed data lines. This device meets IEC 61000-4-2 Level 4 ESD protection standards (±15 kV air discharge, ±8 kV contact discharge).

Detailed Technical Specifications

Key Features

• Low clamping voltage of 5.5 V at 8 A TLP ensures robust protection for sensitive ICs.
• Ultra-low capacitance of 0.5 pF minimizes signal degradation on high-speed data lines.
• Complies with IEC 61000-4-2 Level 4 ESD protection standards.
• Small 12-DSBGA package saves board space for compact designs.
• Wide operating temperature range from -40°C to +125°C.

Target Applications

• USB 2.0 and USB 3.0 interfaces in 5G base stations for reliable data transmission.
• Automotive infotainment systems, such as dashboard USB ports for media playback.
• Portable electronics like smartphones and tablets for USB port protection.
• Industrial control systems with USB connectivity for field data logging.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPD1S514-1YZR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
