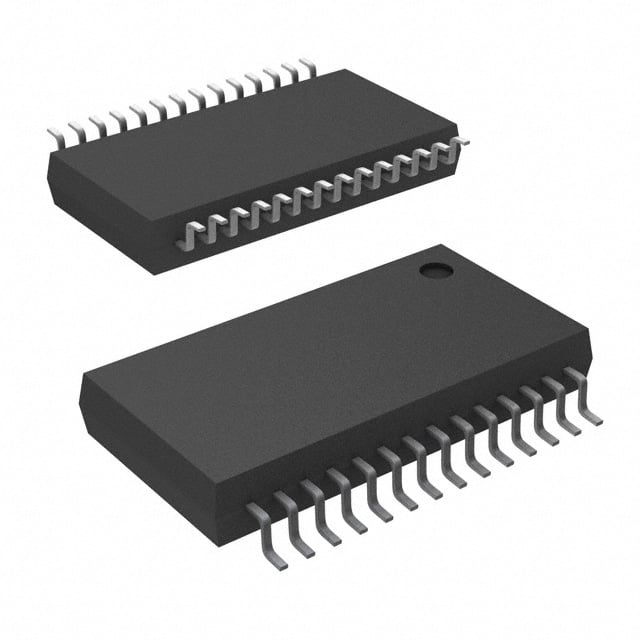

TPIC46L03DBG4 TI Power Management IC | 28-SSOP | 6-Channel Low-Side Driver, 40V

Product Overview

The TPIC46L03DBG4 is a 6-channel low-side driver from Texas Instruments, designed for automotive and industrial applications requiring high-current drive capability. It integrates six DMOS output transistors with common drain configuration, capable of driving resistive, inductive, or capacitive loads. The device operates from a 5V to 40V supply voltage range and provides overcurrent, overtemperature, and ESD protection. Housed in a compact 28-pin SSOP package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• 6-channel low-side driver with integrated DMOS outputs
• Wide supply voltage range: 5V to 40V
• High output current: 1.5A continuous, 3A peak per channel
• Low on-resistance: 0.5Ω typical
• Built-in protection: overcurrent, overtemperature, and ESD
• 3.3V/5V logic compatible inputs
• Compact 28-SSOP package for space-saving designs

Target Applications

• Automotive: LED lighting, solenoid drivers, relay drivers in body control modules
• Industrial: Programmable logic controllers (PLCs), motor control, valve actuators
• Consumer: Power distribution switches, load drivers in smart home devices
• Specific examples: 5G base station power management, automotive dashboard backlighting, industrial conveyor belt control

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPIC46L03DBG4. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
