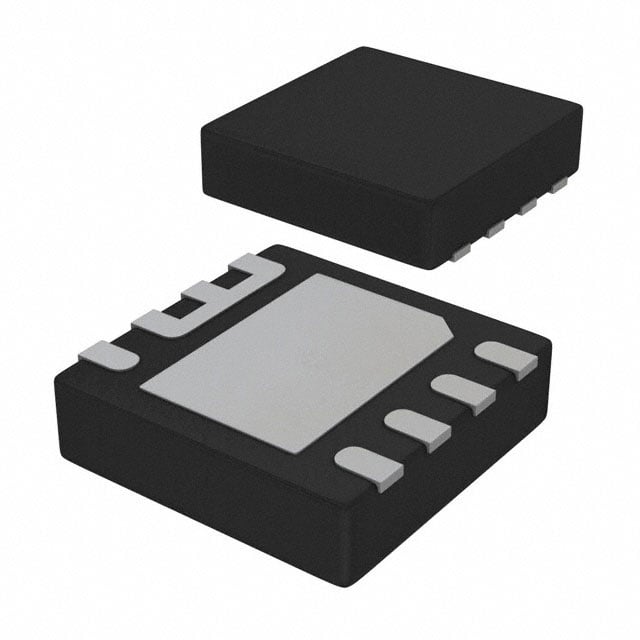

TPS22962DNYT TI Power Switch | 8-WSON (3x3) | 5.5V, 6A, 14mΩ

Product Overview

The TPS22962DNYT from Texas Instruments is a high-performance, 6A load switch with an ultra-low on-resistance of 14mΩ, designed for power distribution and sequencing in space-constrained applications. Housed in a compact 8-WSON (3x3) package, it supports input voltages from 0.6V to 5.5V and features adjustable output discharge, thermal shutdown, and reverse current protection. This device is ideal for modern electronic systems requiring efficient power management and reliable operation.

Detailed Technical Specifications

Key Features

• Ultra-low on-resistance (14mΩ) minimizes power loss
• Wide input voltage range (0.6V to 5.5V) supports various power rails
• High continuous current capability (6A) for demanding loads
• Adjustable output discharge for controlled power-down
• Reverse current protection prevents backflow
• Thermal shutdown ensures safe operation
• Low quiescent current (60µA) and shutdown current (0.1µA)
• Compact 8-WSON (3x3) package saves board space

Target Applications

• 5G base stations: Power sequencing for RF transceivers and FPGAs
• Automotive dashboards: Power distribution for infotainment and display modules
• Industrial IoT: Power management for sensors and edge gateways
• Portable electronics: Battery power path management in smartphones and tablets
• Networking equipment: Hot-swap and power sequencing for switches and routers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS22962DNYT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS22962DNYT 是德州儀器推出的一款高性能 6A 負載開關，具有 14mΩ 的超低導通電阻，專為空間受限應用中的電源分配和排序而設計。它採用緊湊的 8-WSON（3x3）封裝，支持 0.6V 至 5.5V 的輸入電壓，並具有可調輸出放電、熱關斷和反向電流保護功能。該器件非常適合需要高效電源管理和可靠運行的現代電子系統。

詳細技術參數

核心特性

• 超低導通電阻（14mΩ），減少功率損耗
• 寬輸入電壓範圍（0.6V 至 5.5V），支持多種電源軌
• 高連續電流能力（6A），滿足大負載需求
• 可調輸出放電，實現受控斷電
• 反向電流保護，防止電流倒灌
• 熱關斷確保安全運行
• 低靜態電流（60µA）和關斷電流（0.1µA）
• 緊湊的 8-WSON（3x3）封裝，節省電路板空間

典型應用場景

• 5G 基站：射頻收發器和 FPGA 的電源排序
• 汽車儀表板：信息娛樂和顯示模塊的電源分配
• 工業物聯網：傳感器和邊緣網關的電源管理
• 便攜式電子設備：智能手機和平板電腦的電池路徑管理
• 網絡設備：交換機和路由器的熱插拔和電源排序

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS22962DNYT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
