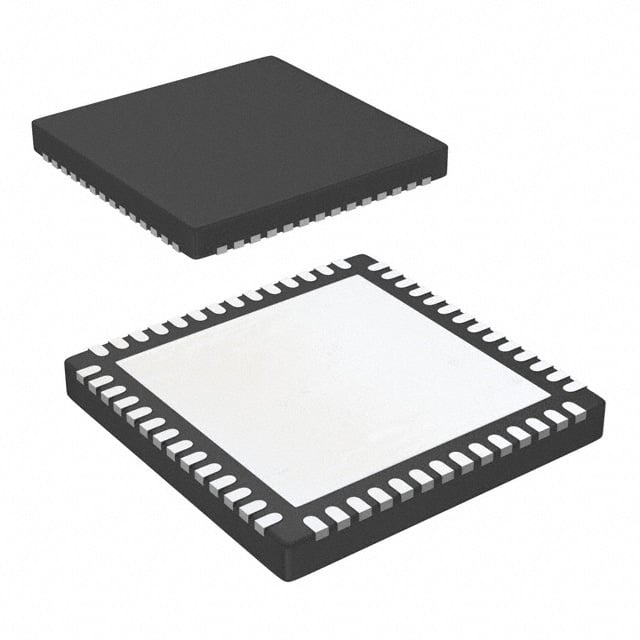

TPS23882RTQT TI Power Management IC | 56-VQFN (8X8) | 4-Channel PoE PSE Controller

Product Overview

The TPS23882RTQT is a highly integrated, 4-channel Power over Ethernet (PoE) Power Sourcing Equipment (PSE) controller from Texas Instruments. It is designed to deliver up to 30W per port (IEEE 802.3at Type 2) and supports both 2-pair and 4-pair power delivery. The device operates from a 3.3V supply and integrates all necessary functions for PoE PSE applications, including detection, classification, current limiting, and disconnect detection. Housed in a compact 56-VQFN (8x8 mm) package, it is ideal for space-constrained networking equipment.

Detailed Technical Specifications

Key Features

• 4 independent PoE PSE channels with per-port power management
• Supports IEEE 802.3at Type 2 (30W) and backward compatible with 802.3af (15.4W)
• Integrated detection and classification logic
• Programmable current limit and disconnect threshold
• I2C interface for configuration and monitoring
• Automatic or manual power management modes
• Thermal shutdown and overcurrent protection
• Compact 56-VQFN package for space-saving designs

Target Applications

• 5G base stations (remote radio units)
• Industrial Ethernet switches (e.g., for factory automation)
• IP cameras (e.g., 4K surveillance systems)
• Wireless access points (e.g., Wi-Fi 6/6E)
• PoE lighting systems
• Smart building controllers
• Medical devices (e.g., patient monitoring)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS23882RTQT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS23882RTQT 是德州儀器（TI）推出的一款高度集成的4通道以太網供電（PoE）電源設備（PSE）控制器。它支持每端口高達30W的功率（IEEE 802.3at Type 2），並兼容2對和4對供電方式。該器件由3.3V電源供電，集成了PoE PSE應用所需的所有功能，包括檢測、分類、限流和斷開檢測。採用緊湊的56-VQFN（8x8 mm）封裝，非常適合空間受限的網絡設備。

詳細技術參數

核心特性

• 4個獨立PoE PSE通道，支持每端口功率管理
• 支持IEEE 802.3at Type 2（30W）並向下兼容802.3af（15.4W）
• 集成檢測和分類邏輯
• 可編程限流和斷開閾值
• I2C接口用於配置和監控
• 自動或手動功率管理模式
• 熱關斷和過流保護
• 緊湊的56-VQFN封裝，節省設計空間

典型應用場景

• 5G基站（遠程射頻單元）
• 工業以太網交換機（如工廠自動化）
• IP攝像機（如4K監控系統）
• 無線接入點（如Wi-Fi 6/6E）
• PoE照明系統
• 智能樓宇控制器
• 醫療設備（如病人監護）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS23882RTQT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
