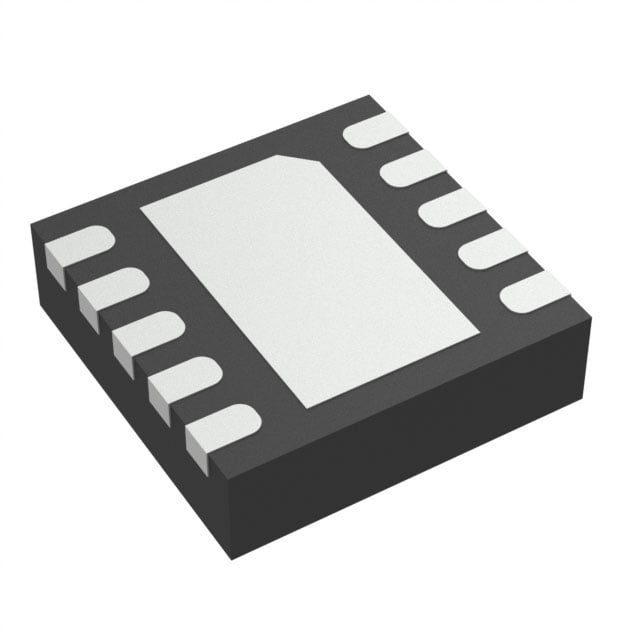

TPS2560ADRCT TI Power Switch | 10-VSON (3x3) | Dual-Channel, 2.5A, Adjustable Current Limit

Product Overview

The TPS2560ADRCT from Texas Instruments is a dual-channel, precision adjustable current-limited power-distribution switch designed for applications requiring robust power management. It operates over a wide input voltage range of 2.5V to 6.5V and can deliver up to 2.5A per channel. The device integrates N-channel MOSFETs with low on-resistance (typically 73mΩ per channel) to minimize power loss and voltage drop. It features programmable current-limit thresholds via external resistors, making it suitable for USB ports, industrial controls, and automotive infotainment systems. The TPS2560ADRCT is housed in a compact 10-pin VSON (3x3 mm) package, ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Dual-channel power switch with independent current limit
• Adjustable current limit via external resistor (0.5A to 2.5A)
• Low on-resistance (73mΩ) for efficient power delivery
• Fast transient response for capacitive loads
• Integrated protection: overcurrent, thermal shutdown, reverse current blocking
• Enable logic compatible with 1.8V/3.3V GPIO
• Small footprint 10-VSON package (3x3 mm)

Target Applications

• USB 2.0/3.0 ports in laptops and docking stations (e.g., Dell Precision 7750)
• 5G base station power distribution (e.g., Nokia AirScale)
• Automotive dashboard infotainment systems (e.g., Tesla Model 3 center display)
• Industrial PLC modules (e.g., Siemens S7-1200)
• Portable medical devices (e.g., GE Healthcare Vscan)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS2560ADRCT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
