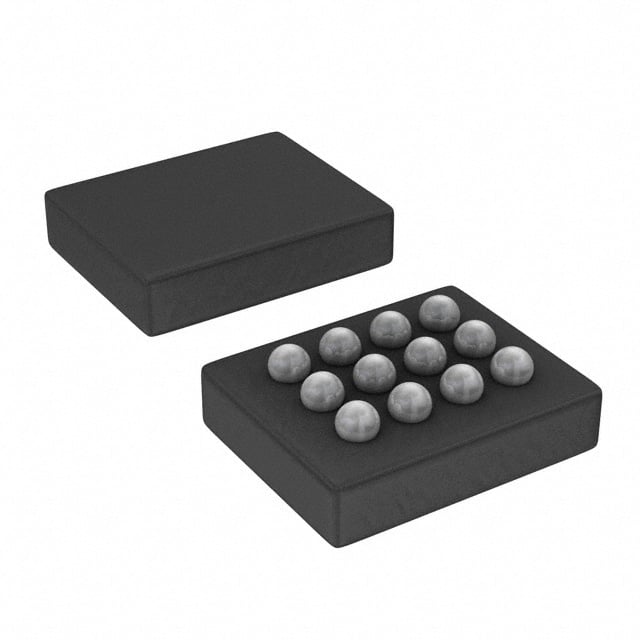

TPS61050AYZGT TI LED Driver | 12-DSBGA | 2.7-5.5V Input, 1.5A Switch

Product Overview

The TPS61050AYZGT from Texas Instruments is a high-efficiency, synchronous boost converter with integrated 1.5A switch, designed to drive up to 5 series white LEDs or provide a regulated output voltage. Housed in a compact 12-DSBGA package, it operates from a 2.7V to 5.5V input supply, making it ideal for battery-powered applications. The device features a 1.2MHz fixed switching frequency, allowing for small external components. With True Shutdown™ isolation and overvoltage protection, it ensures safe operation. The TPS61050AYZGT is optimized for LED backlighting in portable devices, but also suits general-purpose boost applications.

Detailed Technical Specifications

Key Features

• Integrated 1.5A switch for compact solution
• True Shutdown™ isolation: no output discharge in shutdown
• Overvoltage protection (OVP) up to 22V
• 1.2MHz fixed frequency for small inductor and capacitor
• Low quiescent current: 20 µA
• Soft-start to reduce inrush current
• Thermal shutdown protection
• Available in ultra-small 12-DSBGA package

Target Applications

• Smartphone and tablet LCD backlighting (e.g., iPhone 12 display backlight)
• Portable media players (e.g., iPod touch backlight)
• Digital cameras (e.g., Canon PowerShot LCD backlight)
• GPS navigation devices (e.g., Garmin DriveSmart backlight)
• Battery-powered general-purpose boost converters
• 5G small cell base station status LED drivers
• Automotive dashboard backlighting (e.g., Tesla Model 3 instrument cluster)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS61050AYZGT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS61050AYZGT 是德州儀器 (TI) 推出的一款高效率同步升壓轉換器，內置 1.5A 開關，可驅動多達 5 顆串聯白光 LED 或提供穩壓輸出電壓。該器件採用緊湊的 12-DSBGA 封裝，輸入電壓範圍為 2.7V 至 5.5V，非常適合電池供電的應用。它具有 1.2MHz 固定開關頻率，允許使用小型外部元件。憑藉 True Shutdown™ 隔離和過壓保護功能，確保安全運行。TPS61050AYZGT 針對便攜設備的 LED 背光進行了優化，但也適用於通用升壓應用。

詳細技術參數

核心特性

• 集成 1.5A 開關，實現緊湊解決方案
• True Shutdown™ 隔離：關斷時無輸出放電
• 過壓保護 (OVP) 高達 22V
• 1.2MHz 固定頻率，支持小型電感和電容
• 低靜態電流：20 µA
• 軟啟動減少浪湧電流
• 熱關斷保護
• 採用超小型 12-DSBGA 封裝

典型應用場景

• 智能手機和平板電腦 LCD 背光（例如 iPhone 12 顯示屏背光）
• 便攜式媒體播放器（例如 iPod touch 背光）
• 數碼相機（例如 Canon PowerShot LCD 背光）
• GPS 導航設備（例如 Garmin DriveSmart 背光）
• 電池供電的通用升壓轉換器
• 5G 小型基站狀態 LED 驅動器
• 汽車儀表板背光（例如 Tesla Model 3 儀表組）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS61050AYZGT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
