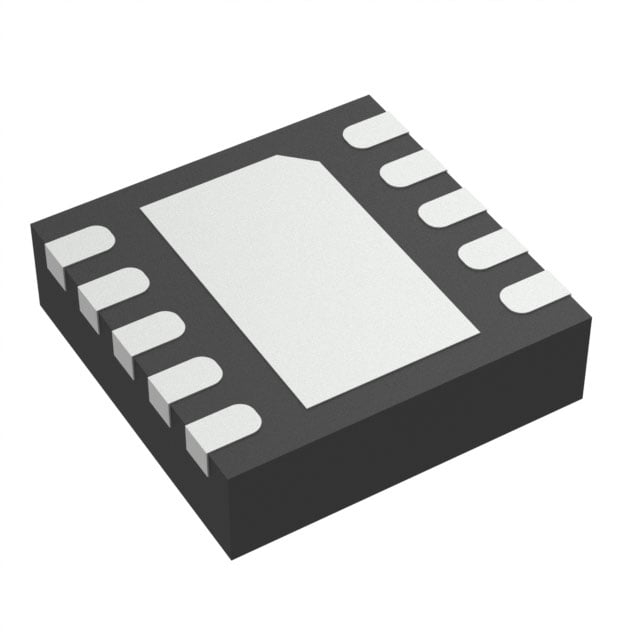

TPS61140DRCT TI LED Driver | 10-VSON (3x3) | 2-Ch, 38V, 1.2A

Product Overview

The TPS61140DRCT from Texas Instruments is a highly integrated, dual-channel boost converter with current sinks designed for driving white LEDs in parallel or series configurations. It operates from a 2.5V to 6V input supply and can boost up to 38V, making it suitable for small to medium-sized LCD backlighting and general illumination applications. The device features two independent current sinks with programmable current up to 1.2A per channel, enabling flexible brightness control via PWM or analog dimming. Housed in a compact 10-pin VSON (3x3 mm) package, it offers a space-saving solution for portable electronics.

Detailed Technical Specifications

Key Features

• Dual-channel boost converter with integrated current sinks
• Wide input voltage range: 2.5V to 6V
• Output voltage up to 38V for series LED configurations
• Programmable LED current up to 1.2A per channel
• PWM and analog dimming for precise brightness control
• High efficiency up to 90%
• Built-in overvoltage, overcurrent, and thermal protection
• Small 10-pin VSON package (3x3 mm) for space-constrained designs

Target Applications

• Smartphone and tablet LCD backlighting
• Automotive dashboard and infotainment displays
• Portable medical devices
• 5G base station indicator lights
• Industrial control panel backlighting
• General LED lighting and signage

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS61140DRCT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
