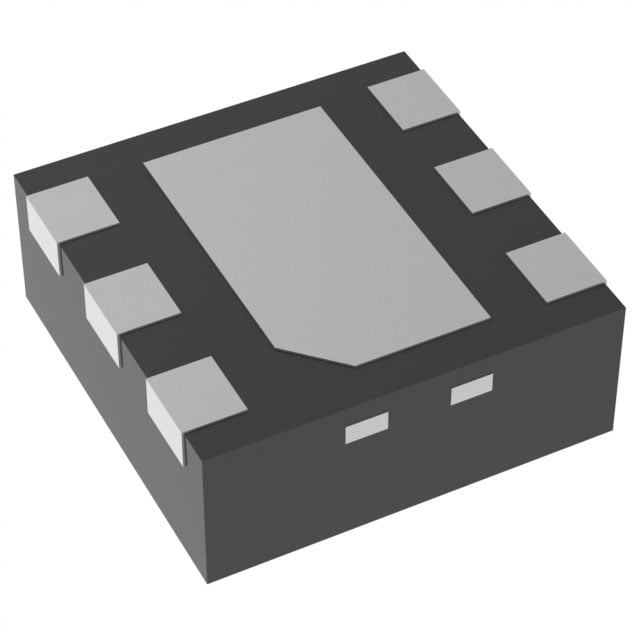

TPS61161ADRVR TI LED Driver | 6-WSON (2x2) | 38V, 1.5A Switch

Product Overview

The TPS61161ADRVR from Texas Instruments is a high-efficiency, step-up white LED driver designed for medium-sized LCD backlight applications. It integrates a 38V, 1.5A switch FET in a compact 6-pin WSON (2x2 mm) package. The device supports up to 10 series white LEDs with constant current regulation for uniform brightness. With a wide input voltage range of 2.7V to 18V, it is suitable for single-cell Li-Ion, multi-cell alkaline, or NiMH/NiCd batteries, as well as regulated 5V/12V rails. The TPS61161A features a 1.2MHz fixed switching frequency, allowing small external components and minimizing output ripple. It includes overvoltage protection, cycle-by-cycle current limit, and thermal shutdown for robust operation.

Detailed Technical Specifications

Key Features

• Integrated 38V, 1.5A switch FET
• Wide input voltage range: 2.7V to 18V
• 1.2MHz fixed switching frequency
• Constant current regulation for uniform LED brightness
• Overvoltage protection (OVP)
• Cycle-by-cycle current limit
• Thermal shutdown
• Small 6-pin WSON package (2x2 mm)

Target Applications

• Smartphone and tablet LCD backlight
• Portable media players
• GPS navigation systems
• Digital cameras
• Industrial display panels
• Automotive dashboard backlight
• 5G base station status indicators
