TPS61199PWPR TI LED Driver | 20-HTSSOP | 40V, 1.5A, PWM Dimming

Product Overview

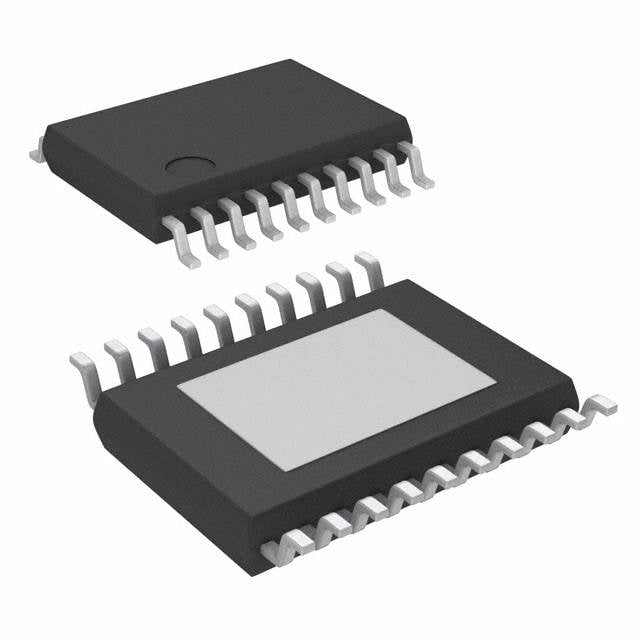

The TPS61199PWPR from Texas Instruments is a high-efficiency, 40V, 1.5A boost LED driver designed for medium to large LCD panel backlighting. It integrates a 40V, 1.5A power switch and supports PWM dimming for precise brightness control. The device operates with an input voltage range of 4.5V to 40V, making it suitable for automotive and industrial applications. The 20-pin HTSSOP package with PowerPad enhances thermal performance.

Detailed Technical Specifications

Key Features

• Integrated 40V, 1.5A power switch
• Wide input voltage range: 4.5V to 40V
• PWM dimming with 5000:1 ratio
• Programmable switching frequency (300kHz to 2.2MHz)
• Comprehensive protection: OVP, OCP, OTP, UVLO
• Thermally enhanced HTSSOP package

Target Applications

• Automotive infotainment displays (e.g., Tesla Model 3 center console)
• Industrial LCD panels (e.g., Siemens HMI panels)
• Medical equipment displays (e.g., GE patient monitors)
• 5G base station status indicators (e.g., Huawei AAU)
• LED backlighting for dashboard clusters (e.g., BMW iDrive)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS61199PWPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
