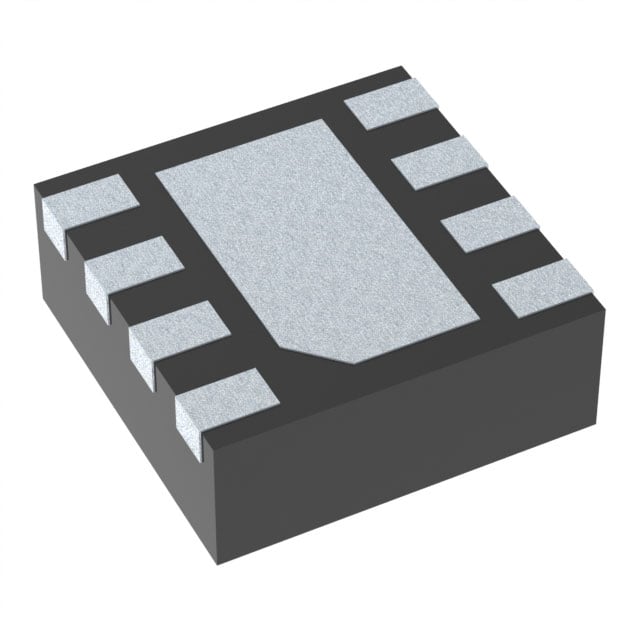

TPS61251DSGT TI Boost Converter | 8-WSON (2x2) | 5.5V Input, 5A Switch

Product Overview

The TPS61251DSGT from Texas Instruments is a high-efficiency, synchronous boost converter with a 5.5A switch current limit. It operates from an input voltage range of 2.3V to 5.5V, making it suitable for single-cell Li-Ion, multi-cell alkaline, or USB-powered applications. The device integrates a 5.5A, 0.035Ω low-side switch and a 0.045Ω synchronous rectifier to achieve up to 95% efficiency. The output voltage can be programmed via external resistors up to 5.5V. The TPS61251DSGT is available in a compact 8-pin WSON package (2mm x 2mm) with a 0.5mm pitch, ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• High efficiency synchronous boost converter
• 5.5A switch current limit
• 2.3V to 5.5V input voltage range
• Adjustable output voltage up to 5.5V
• 2.5 MHz switching frequency for small external components
• Low quiescent current: 17 µA
• Shutdown current: 0.1 µA
• Over-temperature and over-current protection
• Small 8-WSON package (2mm x 2mm)

Target Applications

• 5G base station power supply
• Portable and battery-powered equipment
• USB power delivery
• Industrial sensors and IoT devices
• Automotive dashboard displays
• Medical devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS61251DSGT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS61251DSGT 是德州儀器（TI）推出的一款高效率、同步升壓轉換器，具有 5.5A 開關電流限制。其輸入電壓範圍為 2.3V 至 5.5V，適用於單節鋰離子電池、多節鹼性電池或 USB 供電應用。該器件集成了 5.5A、0.035Ω 的低側開關和 0.045Ω 的同步整流器，效率高達 95%。輸出電壓可通過外部電阻編程，最高可達 5.5V。TPS61251DSGT 採用緊湊的 8 引腳 WSON 封裝（2mm x 2mm），引腳間距 0.5mm，非常適合空間受限的設計。

詳細技術參數

核心特性

• 高效率同步升壓轉換器
• 5.5A 開關電流限制
• 2.3V 至 5.5V 輸入電壓範圍
• 可調輸出電壓，最高 5.5V
• 2.5 MHz 開關頻率，支持小型外部元件
• 低靜態電流：17 µA
• 關斷電流：0.1 µA
• 過溫和過流保護
• 小型 8-WSON 封裝（2mm x 2mm）

典型應用場景

• 5G 基站電源
• 便攜式和電池供電設備
• USB 電源傳輸
• 工業傳感器和物聯網設備
• 汽車儀表盤顯示
• 醫療設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS61251DSGT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
