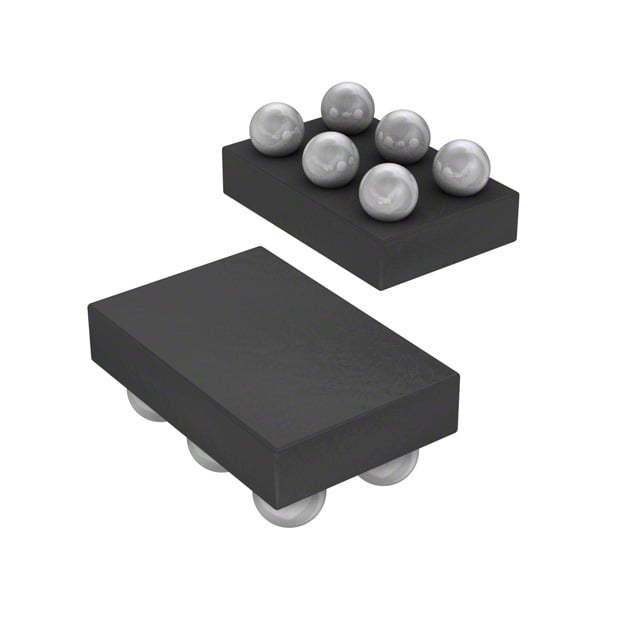

TPS62806YKAT TI Step-Down Converter | 6-DSBGA (1.05X0.70) | 0.6A, 5.5V

Product Overview

The TPS62806YKAT from Texas Instruments is a high-efficiency, low-riipple step-down (buck) DC-DC converter designed for space-constrained applications. It delivers up to 0.6A output current from a 2.4V to 5.5V input supply. The device features a 6-pin DSBGA package measuring 1.05mm x 0.70mm, making it ideal for compact portable electronics. With a typical switching frequency of 4MHz, the TPS62806YKAT enables the use of small external inductors and capacitors, reducing overall solution size. The device offers excellent transient response and output voltage accuracy, supporting fixed output voltages from 0.6V to 4.0V via external resistors.

Detailed Technical Specifications

Key Features

• High efficiency up to 95% across load range
• Low quiescent current of 17 µA for extended battery life
• 4 MHz switching frequency minimizes external component size
• Small 6-pin DSBGA package (1.05mm x 0.70mm)
• Excellent load and line transient response
• Overcurrent and overtemperature protection
• Power-good output for sequencing

Target Applications

• 5G base station power management
• Automotive dashboard and infotainment systems
• Portable medical devices
• Wearable electronics
• IoT modules and sensors
• Smartphones and tablets

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS62806YKAT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS62806YKAT 是德州儀器（TI）推出的一款高效率、低紋波降壓型 DC-DC 轉換器，專為空間受限的應用設計。它可在 2.4V 至 5.5V 輸入電壓下提供高達 0.6A 的輸出電流。器件採用 1.05mm x 0.70mm 的 6 引腳 DSBGA 封裝，非常適合緊湊型便攜電子設備。典型開關頻率為 4MHz，允許使用小型外部電感和電容，從而減小整體解決方案尺寸。該器件具有出色的瞬態響應和輸出電壓精度，支持通過外部電阻設定 0.6V 至 4.0V 的固定輸出電壓。

詳細技術參數

核心特性

• 全負載範圍內效率高達 95%
• 17 µA 低靜態電流，延長電池壽命
• 4 MHz 開關頻率，減小外部元件尺寸
• 小型 6 引腳 DSBGA 封裝（1.05mm x 0.70mm）
• 出色的負載和線路瞬態響應
• 過流和過溫保護
• 電源正常輸出，用於時序控制

典型應用場景

• 5G 基站電源管理
• 汽車儀表盤和信息娛樂系統
• 便攜醫療設備
• 可穿戴電子產品
• 物聯網模塊和傳感器
• 智能手機和平板電腦

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS62806YKAT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
