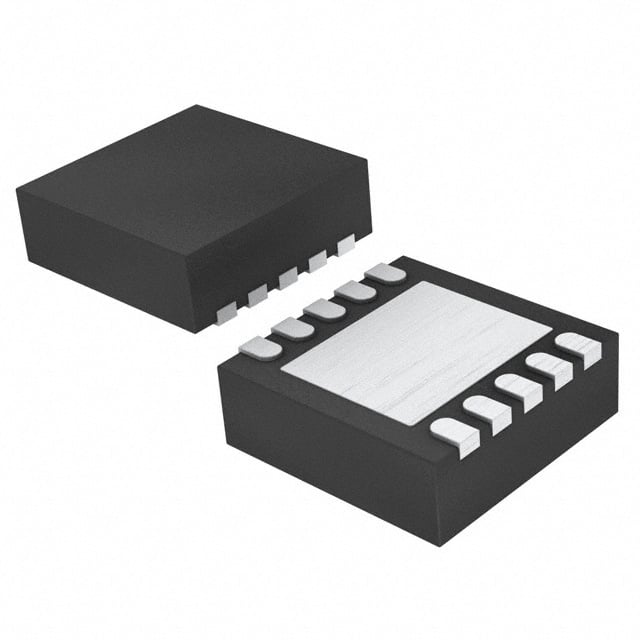

TPS63030DSKTG4 TI Buck-Boost Converter | 10-SON (2.5x2.5) | 1.8-5.5V Input, 1.2A Output

Product Overview

The TPS63030DSKTG4 from Texas Instruments is a high-efficiency, low-quiescent-current buck-boost converter capable of delivering up to 1.2 A of output current. It operates from a single-cell Li-Ion battery or standard 3.3V/5V rails, with an input voltage range of 1.8 V to 5.5 V. The device automatically transitions between buck and boost modes based on input-to-output voltage ratio, ensuring optimal efficiency across the entire battery voltage range. Housed in a compact 10-pin SON package (2.5 mm × 2.5 mm), it is ideal for space-constrained portable and industrial applications.

Detailed Technical Specifications

Key Features

• Automatic buck-boost transition for seamless operation
• High efficiency up to 96% over a wide load range
• Low quiescent current of 17 µA extends battery life
• 2.5 MHz switching frequency enables small external components
• Power-save mode for improved light-load efficiency
• Output voltage accuracy ±2%
• Thermal shutdown and overcurrent protection

Target Applications

• Portable battery-powered devices (e.g., smartphones, tablets, wearables)
• Industrial sensors and IoT modules (e.g., temperature/humidity sensors, wireless transceivers)
• Medical devices (e.g., portable glucose meters, pulse oximeters)
• 5G base station power management (e.g., small cell power supplies)
• Automotive infotainment and dashboard displays (e.g., head units, instrument clusters)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS63030DSKTG4. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS63030DSKTG4 是德州儀器推出的一款高效率、低靜態電流升降壓轉換器，可提供高達 1.2 A 的輸出電流。它適用於單節鋰離子電池或標準 3.3V/5V 電源軌，輸入電壓範圍為 1.8 V 至 5.5 V。該器件根據輸入與輸出電壓比自動在降壓和升壓模式之間切換，確保在整個電池電壓範圍內實現最佳效率。採用緊湊的 10 引腳 SON 封裝（2.5 mm × 2.5 mm），非常適合空間受限的便攜式和工業應用。

詳細技術參數

核心特性

• 自動升降壓切換，實現無縫操作
• 在寬負載範圍內效率高達 96%
• 17 µA 低靜態電流，延長電池壽命
• 2.5 MHz 開關頻率，支持小型外部元件
• 省電模式提升輕載效率
• 輸出電壓精度 ±2%
• 熱關斷和過流保護

典型應用場景

• 便攜式電池供電設備（如智能手機、平板電腦、可穿戴設備）
• 工業傳感器和 IoT 模塊（如溫濕度傳感器、無線收發器）
• 醫療設備（如便攜式血糖儀、脈搏血氧儀）
• 5G 基站電源管理（如小型基站電源）
• 汽車信息娛樂和儀表盤顯示（如主機、儀表組）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS63030DSKTG4 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
