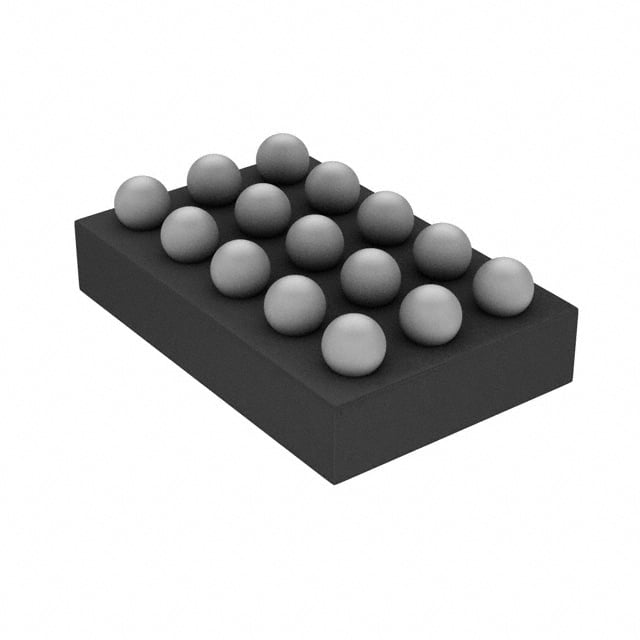

TPS65132L0YFFR TI PMIC | 15-DSBGA | Dual Output, 5.5V

Product Overview

The TPS65132L0YFFR is a high-performance power management IC (PMIC) from Texas Instruments, designed to generate dual output voltages for small- to medium-sized LCD bias supplies. It integrates a boost converter and a linear regulator to provide positive and negative voltage rails, making it ideal for powering TFT-LCD panels in portable devices. The device operates from a single 2.5V to 5.5V input supply and delivers up to 200mA per output. Housed in a compact 15-ball DSBGA package (1.5mm x 1.5mm), it offers a space-saving solution for space-constrained applications.

Detailed Technical Specifications

Key Features

• Dual output: positive and negative rails for LCD bias
• High efficiency: up to 90% reduces power loss
• Low quiescent current: 40µA extends battery life
• Small package: 15-DSBGA saves PCB space
• Adjustable output voltages via external resistors
• Integrated soft-start reduces inrush current
• Overcurrent and overtemperature protection

Target Applications

• Smartphones and tablets (e.g., Samsung Galaxy S23, Apple iPad)
• Portable media players (e.g., iPod Touch)
• Digital cameras (e.g., Canon PowerShot)
• Portable gaming consoles (e.g., Nintendo Switch Lite)
• Wearable devices (e.g., smartwatches)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS65132L0YFFR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS65132L0YFFR 是德州儀器（TI）推出的一款高性能電源管理 IC，專為中小型 LCD 偏壓電源設計。它整合了升壓轉換器和線性穩壓器，提供正負電壓軌，非常適合為可攜式設備中的 TFT-LCD 面板供電。該器件可在 2.5V 至 5.5V 的單一輸入電源下工作，每路輸出最高可達 200mA。採用緊湊的 15 球 DSBGA 封裝（1.5mm x 1.5mm），為空間受限的應用提供了節省空間的解決方案。

詳細技術參數

核心特性

• 雙路輸出：正負電壓軌，適用於 LCD 偏壓
• 高效率：高達 90%，降低功耗
• 低靜態電流：40µA，延長電池壽命
• 小型封裝：15-DSBGA，節省 PCB 空間
• 輸出電壓可通過外部電阻調整
• 內建軟啟動，減少浪湧電流
• 過流和過溫保護

典型應用場景

• 智能手機和平板電腦（例如 Samsung Galaxy S23、Apple iPad）
• 可攜式媒體播放器（例如 iPod Touch）
• 數位相機（例如 Canon PowerShot）
• 可攜式遊戲機（例如 Nintendo Switch Lite）
• 穿戴式設備（例如智能手錶）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS65132L0YFFR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
