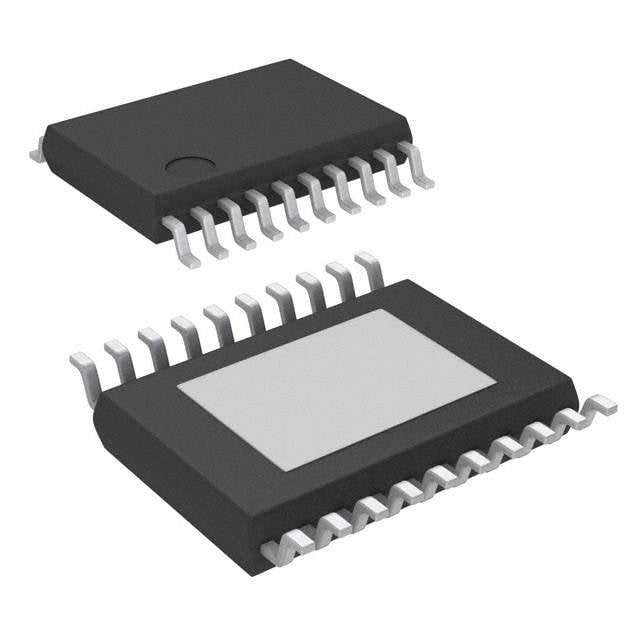

TPS70158PWP TI Dual-Output LDO Regulator | 20-HTSSOP | 3.3V/1.8V, 500mA

Product Overview

The TPS70158PWP from Texas Instruments is a dual-output low-dropout (LDO) voltage regulator designed for applications requiring two independent regulated voltages. Housed in a 20-pin HTSSOP package, this device delivers up to 500 mA per output with a dropout voltage as low as 170 mV at full load. It features a wide input voltage range of 2.7 V to 6 V, making it suitable for battery-powered and industrial systems. The TPS70158PWP integrates power-good (PG) indicators, enable pins, and thermal shutdown protection, ensuring reliable operation in demanding environments.

Detailed Technical Specifications

Key Features

• Dual independent LDO outputs with fixed 3.3 V and 1.8 V
• Low dropout voltage: 170 mV at 500 mA
• Low quiescent current: 185 µA typical
• Power-good (PG) output for each regulator
• Enable pins for individual channel control
• Thermal shutdown and overcurrent protection
• Stable with ceramic output capacitors
• Small 20-HTSSOP package for space-constrained designs

Target Applications

• 5G base station power management (e.g., supplying 3.3 V to FPGA core and 1.8 V to I/O)
• Automotive dashboard displays (e.g., powering infotainment processor and display driver)
• Industrial sensor modules (e.g., dual-voltage supply for microcontroller and analog front-end)
• Portable medical devices (e.g., glucose meter with separate analog and digital rails)
• Networking equipment (e.g., router with 3.3 V for PHY and 1.8 V for memory)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS70158PWP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
