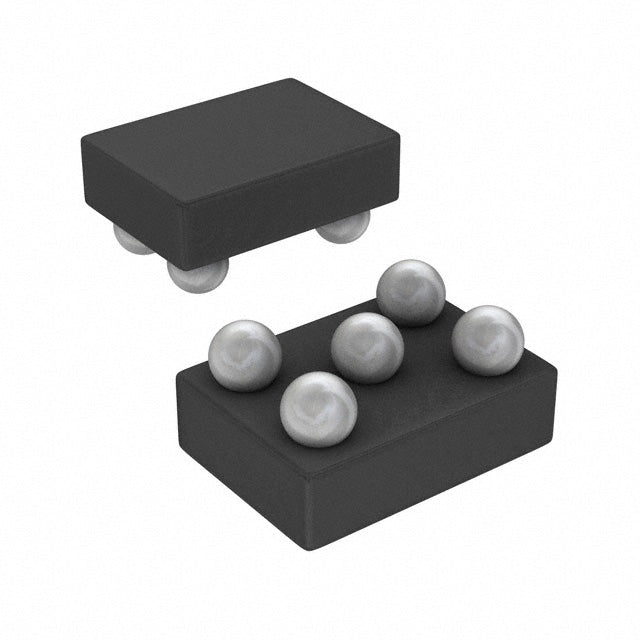

TPS72013YZUT TI LDO Regulator | 5-DSBGA (0.96X1.33) | 200mA, 1.3V Output

Product Overview

The TPS72013YZUT from Texas Instruments is a high-performance, low-dropout (LDO) linear voltage regulator designed for space-constrained applications. Housed in a compact 5-DSBGA package measuring 0.96mm x 1.33mm, this device delivers a fixed output voltage of 1.3V with a maximum output current of 200mA. It features ultra-low dropout voltage (typically 100mV at 200mA), high PSRR (60dB at 1kHz), and low quiescent current (25µA typical). The TPS72013YZUT is ideal for powering noise-sensitive analog and digital circuits in portable and battery-powered devices.

Detailed Technical Specifications

Key Features

• Ultra-low dropout voltage: 100mV at 200mA
• High PSRR: 60dB at 1kHz
• Low quiescent current: 25µA
• Low output noise: 30µVrms
• Stable with ceramic capacitors (1µF)
• Overcurrent and thermal protection
• Small 5-DSBGA package (0.96mm x 1.33mm)

Target Applications

• 5G base stations: Powering RF transceivers and PLLs
• Automotive dashboard: Clean supply for infotainment and ADAS sensors
• Portable medical devices: ECG monitors, glucose meters
• Industrial IoT: Wireless sensor nodes, data loggers
• Battery-powered equipment: Smartphones, wearables

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS72013YZUT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS72013YZUT 是德州儀器（TI）推出的一款高性能低壓差線性穩壓器（LDO），專為空間受限的應用設計。採用緊湊的 5-DSBGA 封裝，尺寸僅為 0.96mm x 1.33mm，提供固定的 1.3V 輸出電壓，最大輸出電流 200mA。該器件具有超低壓差（典型值 100mV @ 200mA）、高 PSRR（60dB @ 1kHz）和低靜態電流（典型值 25µA）。TPS72013YZUT 非常適合為便攜式和電池供電設備中的噪聲敏感型模擬和數字電路供電。

詳細技術參數

核心特性

• 超低壓差：200mA 時僅 100mV
• 高 PSRR：1kHz 時 60dB
• 低靜態電流：25µA
• 低輸出噪聲：30µVrms
• 與陶瓷電容（1µF）穩定工作
• 過流和過熱保護
• 小型 5-DSBGA 封裝（0.96mm x 1.33mm）

典型應用場景

• 5G 基站：為射頻收發器和鎖相環供電
• 汽車儀表板：為信息娛樂系統和 ADAS 傳感器提供清潔電源
• 便攜式醫療設備：心電圖監護儀、血糖儀
• 工業物聯網：無線傳感器節點、數據記錄器
• 電池供電設備：智能手機、可穿戴設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS72013YZUT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
