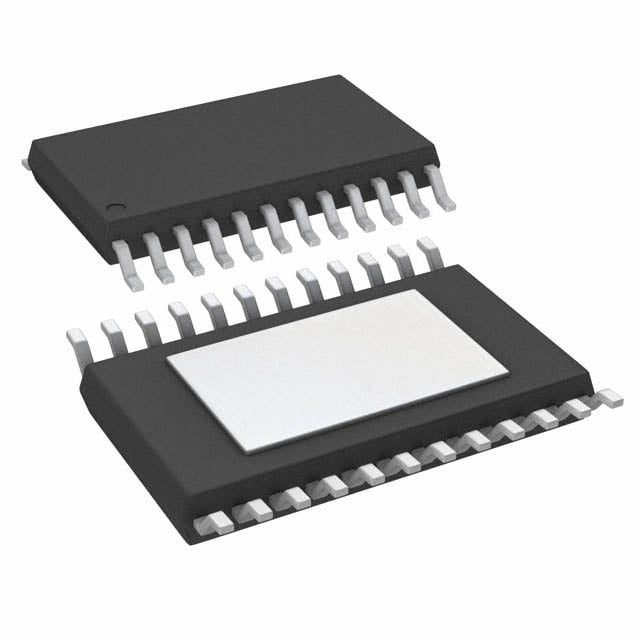

TPS929120QPWPRQ1 TI LED Driver | 24-HTSSOP | 12-Ch, 40V, FlexWire

Product Overview

The TPS929120QPWPRQ1 is a high-performance 12-channel LED driver from Texas Instruments, designed for automotive exterior lighting applications. It integrates a FlexWire interface for daisy-chain communication, enabling synchronized control of multiple LEDs with minimal wiring. The device operates from a 4.5V to 40V supply, making it suitable for 12V and 24V automotive systems. Each channel can sink up to 75 mA, with 8-bit PWM dimming for precise brightness control. The package is a 24-pin HTSSOP with PowerPAD for enhanced thermal performance.

Detailed Technical Specifications

Key Features

• 12-channel constant-current LED driver with FlexWire interface
• Wide input voltage range: 4.5 V to 40 V
• Individual channel PWM dimming with 8-bit resolution
• Integrated diagnostics for fault detection (open/short LED)
• Thermal shutdown protection
• AEC-Q100 qualified for automotive applications
• Low quiescent current in standby mode

Target Applications

• Automotive exterior lighting: headlights, taillights, turn signals, daytime running lights (DRL)
• Interior ambient lighting: dashboard backlighting, dome lights
• Industrial LED signage and display backlighting
• 5G base station status indicators
• Agricultural vehicle lighting (tractors, harvesters)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS929120QPWPRQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
