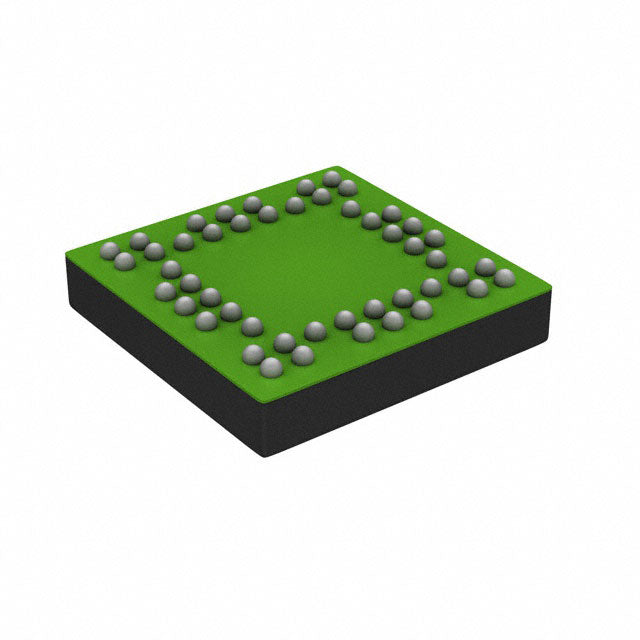

TS2PCIE2212ZAHR TI PCIe Switch | 48-NFBGA (5x5) | 2-Ch, 2:1 Mux

Product Overview

The TS2PCIE2212ZAHR is a high-performance 2-channel, 2:1 multiplexer/demultiplexer switch from Texas Instruments, designed for PCI Express Gen2 applications. It supports data rates up to 5 Gbps per channel, making it ideal for switching PCIe lanes in systems requiring signal routing flexibility. Housed in a compact 48-NFBGA (5x5 mm) package, it offers low insertion loss, minimal crosstalk, and excellent signal integrity.

Detailed Technical Specifications

Key Features

• Two differential channels for PCIe Gen2 switching
• Low insertion loss and return loss for high-speed signals
• Low crosstalk for signal integrity
• Wide supply voltage range: 3.0V to 3.6V
• Industrial temperature range: -40°C to +85°C
• Small footprint: 48-NFBGA (5x5 mm)
• ESD protection: 2 kV HBM

Target Applications

• 5G base stations: switching PCIe lanes between baseband units and radio units
• Automotive infotainment: routing PCIe signals in dashboard systems
• Data center servers: multiplexing PCIe lanes for storage and networking
• Industrial PCs: flexible PCIe lane assignment for expansion cards
• Test equipment: signal routing for automated test systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TS2PCIE2212ZAHR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
