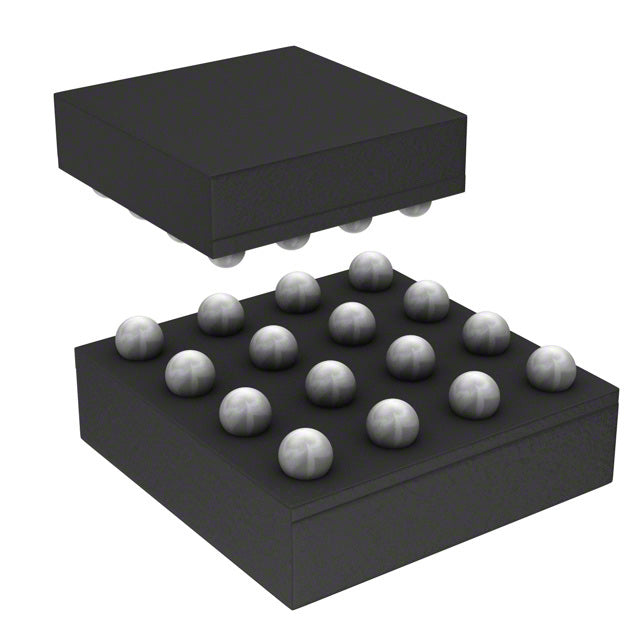

TS3A225EYFFR TI Audio Jack Switch | 16-DSBGA (1.56x1.56) | 2:1 Mux, 0.5Ω

Product Overview

The TS3A225EYFFR is a high-performance audio jack switch from Texas Instruments, designed for automatic detection and switching of audio signals in portable devices. It integrates a 2:1 multiplexer with low on-resistance (0.5Ω typical) and supports both stereo and mono configurations. The device operates over a wide supply voltage range of 2.7V to 5.5V and is housed in a compact 16-DSBGA (1.56mm x 1.56mm) package, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Low on-resistance (0.5Ω) minimizes signal distortion
• Wide supply voltage range (2.7V to 5.5V)
• High bandwidth (100 MHz) supports high-quality audio
• Integrated automatic detection logic for audio jack insertion
• Ultra-small package (1.56mm x 1.56mm) saves board space
• Low power consumption (0.5μA typical in shutdown)
• ESD protection up to ±8kV HBM

Target Applications

• Smartphones and tablets (e.g., Samsung Galaxy S23, Apple iPad)
• Portable audio players (e.g., Sony Walkman NW-A306)
• Laptops and ultrabooks (e.g., Dell XPS 13, MacBook Air)
• Gaming consoles (e.g., Nintendo Switch)
• Automotive infotainment systems (e.g., Tesla Model 3 dashboard)
• 5G base stations for audio monitoring interfaces

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TS3A225EYFFR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
