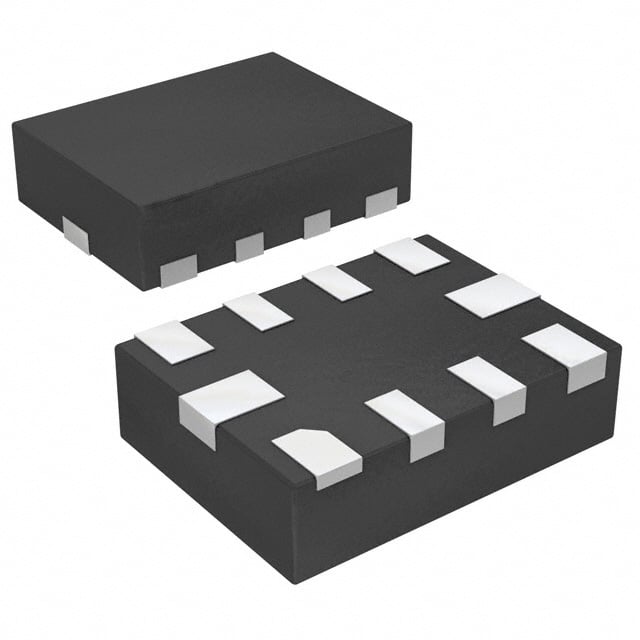

TS3USB221RSER TI USB Switch | 10-UQFN (2.0x1.5) | 2:1 MUX, 6.5pF, 3.3V

Product Overview

The TS3USB221RSER is a high-performance USB 2.0 analog switch from Texas Instruments, designed for multiplexing USB signals in portable and consumer electronics. It features a 2:1 multiplexer configuration, allowing two USB sources to share a single USB connector. The device operates over a wide supply voltage range of 2.3V to 3.6V and offers low on-state capacitance (6.5pF typical) and low on-resistance (6Ω typical), ensuring minimal signal degradation. Housed in a compact 10-UQFN (2.0x1.5mm) package, it is ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Low on-state capacitance (6.5pF) for high-speed USB 2.0 signal integrity
• Low on-resistance (6Ω) minimizes insertion loss
• Wide supply voltage range (2.3V to 3.6V) compatible with various logic levels
• High bandwidth (720 MHz) supports USB 2.0 high-speed (480 Mbps) and other high-speed interfaces
• ESD protection up to ±8 kV (contact) for robust system reliability
• Ultra-small 10-UQFN package saves board space
• Break-before-make switching prevents signal contention

Target Applications

• USB 2.0 signal switching in smartphones, tablets, and laptops
• Portable media players and digital cameras
• 5G base station control boards for USB debug/configuration port sharing
• Automotive infotainment systems (e.g., dashboard USB hub)
• Industrial handheld terminals with shared USB connector

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TS3USB221RSER. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
