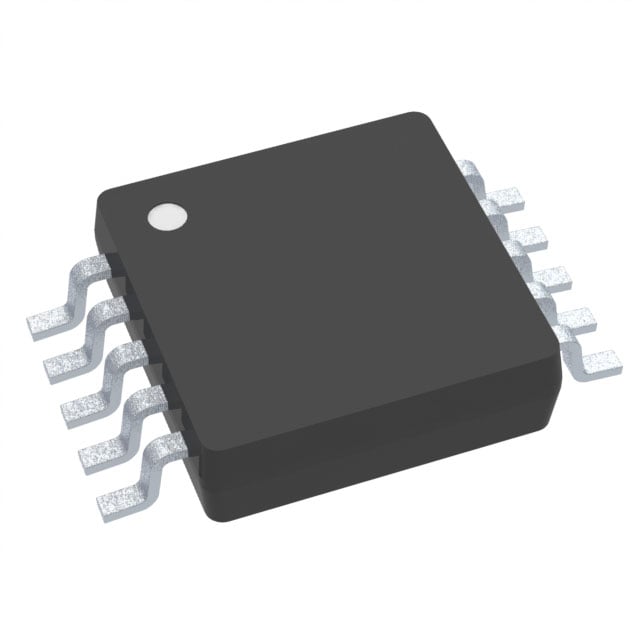

TS5A22362DGSR TI Analog Switch | 10-VSSOP | 0.5Ω Ron, 2:1 SPDT

Product Overview

The TS5A22362DGSR is a high-performance, bidirectional, single-pole double-throw (SPDT) analog switch from Texas Instruments. It operates from a single 1.65V to 5.5V supply, making it ideal for low-voltage applications. With a typical on-state resistance of 0.5Ω and excellent channel-to-channel matching, this switch ensures minimal signal distortion and low power consumption. The device is offered in a compact 10-pin VSSOP package, suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Low On-State Resistance (0.5Ω typical)
• Wide Supply Voltage Range (1.65V to 5.5V)
• High Bandwidth (100 MHz)
• Fast Switching Speed (tON = 25 ns, tOFF = 15 ns)
• Low Power Consumption (0.1 μW typical)
• Break-Before-Make Switching
• ESD Protection (2 kV HBM)
• Small Package (10-VSSOP)

Target Applications

The TS5A22362DGSR is ideal for audio and video signal routing, data acquisition systems, and communication interfaces. Specific applications include:

• 5G base station signal routing
• Automotive dashboard display switching
• Portable medical devices (e.g., patient monitors)
• Industrial control systems (e.g., PLCs)
• Consumer electronics (e.g., smartphones, tablets)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TS5A22362DGSR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
