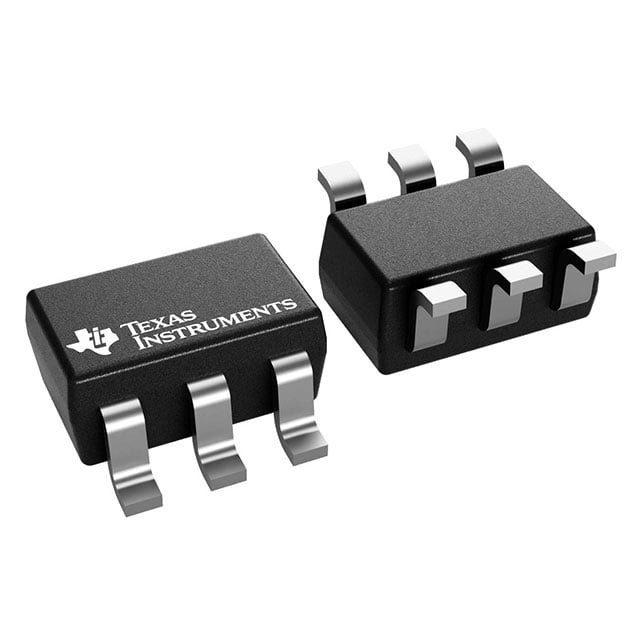

TS5A3159ADCKT TI Analog Switch | SC-70-6 | 1Ω, SPDT

Product Overview

The TS5A3159A is a single-pole double-throw (SPDT) analog switch from Texas Instruments, designed for low-voltage, low-on-resistance applications. It operates from a single supply voltage range of 1.65V to 5.5V, making it ideal for portable and battery-powered devices. The device features a typical on-resistance of 1Ω, ensuring minimal signal distortion and power loss. Housed in a compact SC-70-6 package, it is suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Low on-resistance (1Ω typical) minimizes signal attenuation
• Wide supply voltage range (1.65V to 5.5V) supports various logic levels
• High bandwidth (100 MHz) for analog and digital signals
• Fast switching speeds (20 ns turn-on, 15 ns turn-off)
• Low power consumption (0.5 μW typical)
• Break-before-make switching prevents signal overlap
• ESD protection up to 2 kV HBM
• Small SC-70-6 package saves board space

Target Applications

• 5G base station: Signal routing in RF front-end modules
• Automotive dashboard: Audio signal switching for infotainment systems
• Portable medical devices: ECG signal multiplexing
• Industrial sensors: Analog signal selection in data acquisition systems
• Consumer electronics: Audio path switching in smartphones and tablets

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TS5A3159ADCKT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
