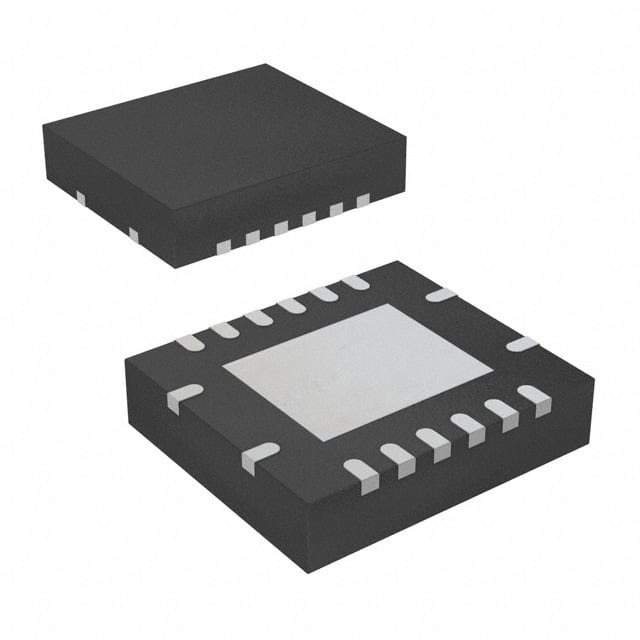

TSC2046EIRGVR TI Touch Screen Controller | 16-VQFN(4x3.5) | 4-Wire, 12-Bit, 2.2V-5.25V

Product Overview

The TSC2046EIRGVR is a low-power, 4-wire resistive touch screen controller from Texas Instruments. It features a 12-bit resolution successive approximation register (SAR) A/D converter and operates from a single 2.2V to 5.25V supply. The device includes a touch pressure measurement function and a built-in temperature sensor. It communicates via a serial interface (SPI-compatible) and is available in a compact 16-pin VQFN (4x3.5mm) package, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• 12-bit SAR ADC with 4-wire resistive touch screen interface
• Low power consumption: 0.5 mW typical at 2.7V
• Single supply operation: 2.2V to 5.25V
• SPI-compatible serial interface
• Built-in touch pressure measurement
• On-chip temperature sensor
• Battery monitoring capability
• Small 16-pin VQFN package (4x3.5mm)

Target Applications

• Portable media players (e.g., iPod touch alternatives)
• Smartphones and tablets (e.g., Samsung Galaxy Tab series)
• GPS navigation systems (e.g., Garmin DriveSmart)
• Point-of-sale terminals (e.g., Verifone VX 520)
• Industrial control panels (e.g., Siemens HMI)
• Medical devices (e.g., patient monitoring touchscreens)
• Automotive infotainment systems (e.g., Tesla Model S center display)
• 5G base station control interfaces

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSC2046EIRGVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
