TSC2046IGQCR TI Touch Screen Controller | 48-BGAMICROSTARJUNIOR(4x4) | 4-Wire, 12-Bit

Product Overview

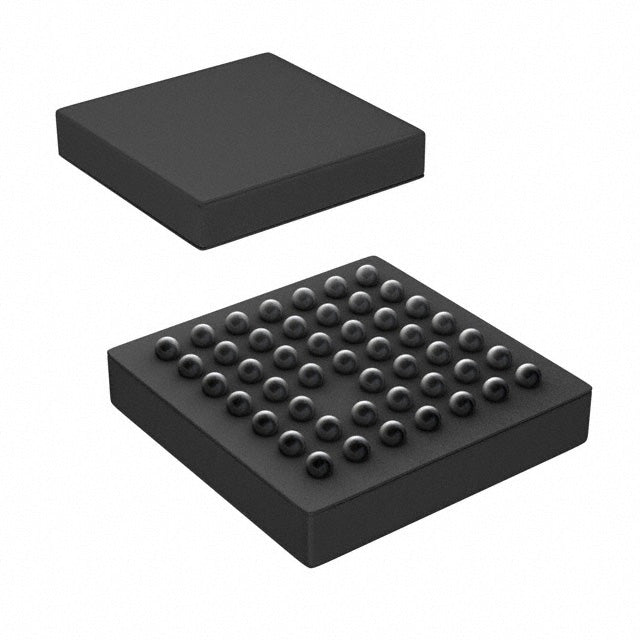

The TSC2046IGQCR is a high-performance, low-power 4-wire resistive touch screen controller from Texas Instruments. It features a 12-bit successive approximation register (SAR) analog-to-digital converter (ADC) with a synchronous serial interface. The device operates from a single 2.2V to 5.25V supply, making it ideal for battery-powered applications. It includes a built-in 2.5V reference and supports touch pressure measurement. The package is a 48-ball BGA MICROSTAR JUNIOR (4x4 mm), offering a compact solution for space-constrained designs.

Detailed Technical Specifications

Key Features

• 12-bit SAR ADC with SPI interface
• Low power: 0.5 mW typical at 2.7V
• Single supply: 2.2V to 5.25V
• Built-in 2.5V reference
• Touch pressure measurement capability
• Compact 48-ball BGA package (4x4 mm)
• Operating temperature range: -40°C to +85°C

Target Applications

• Portable media players (e.g., iPod touch)
• Smartphones and tablets (e.g., Samsung Galaxy Tab)
• GPS navigation systems (e.g., Garmin nuvi)
• Point-of-sale terminals (e.g., Verifone VX 520)
• Industrial control panels (e.g., Siemens HMI)
• Medical devices (e.g., patient monitoring touchscreens)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSC2046IGQCR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
