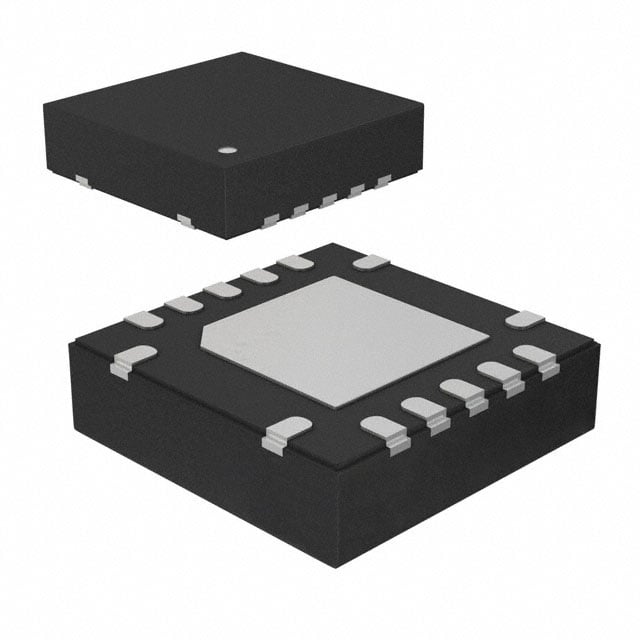

TUSB213IRGYT TI USB 2.0 High-Speed Signal Conditioner | 14-VQFN (3.5x3.5) | 480 Mbps, 1.8V

Product Overview

The TUSB213IRGYT is a USB 2.0 high-speed signal conditioner from Texas Instruments, designed to extend signal integrity over longer cable lengths or through additional connectors. It features a single-channel USB 2.0 high-speed (480 Mbps) signal conditioning with adjustable equalization and output swing. The device is housed in a compact 14-pin VQFN package (3.5 mm x 3.5 mm) and operates from a 1.8V supply voltage, making it ideal for space-constrained and low-power applications.

Detailed Technical Specifications

Key Features

• Single-channel USB 2.0 high-speed signal conditioning
• Adjustable equalization to compensate for cable and connector losses
• Output swing control for optimized signal levels
• Auto-sleep mode for low power consumption
• Small 14-VQFN package (3.5 mm x 3.5 mm) for space-constrained designs
• 1.8V supply voltage compatible with low-power systems
• Enhanced ESD protection up to ±8 kV contact and ±15 kV air discharge

Target Applications

• 5G base stations: USB interface for configuration and data logging
• Automotive dashboard: USB connectivity for infotainment and diagnostics
• Industrial PCs: USB port extension for reliable data transfer
• Consumer electronics: Tablets, laptops, and docking stations
• Medical devices: USB isolation and signal conditioning for patient monitoring

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TUSB213IRGYT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TUSB213IRGYT 是德州儀器（TI）推出的 USB 2.0 高速信號調節器，專為延長信號在較長電纜或額外連接器上的完整性而設計。它支持單通道 USB 2.0 高速（480 Mbps）信號調節，具有可調均衡和輸出擺幅控制功能。器件採用緊湊的 14 引腳 VQFN 封裝（3.5 mm x 3.5 mm），工作電壓為 1.8V，非常適合空間受限和低功耗應用。

詳細技術參數

核心特性

• 單通道 USB 2.0 高速信號調節
• 可調均衡，補償電纜和連接器損耗
• 輸出擺幅控制，優化信號電平
• 自動休眠模式，降低功耗
• 小型 14-VQFN 封裝 (3.5 mm x 3.5 mm)，適合空間受限設計
• 1.8V 供電電壓，兼容低功耗系統
• 增強 ESD 保護，最高 ±8 kV 接觸放電和 ±15 kV 空氣放電

典型應用場景

• 5G 基站：用於配置和數據記錄的 USB 接口
• 汽車儀表板：信息娛樂和診斷的 USB 連接
• 工業 PC：可靠的數據傳輸 USB 端口擴展
• 消費電子：平板電腦、筆記本電腦和擴展塢
• 醫療設備：用於患者監護的 USB 隔離和信號調節

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TUSB213IRGYT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
