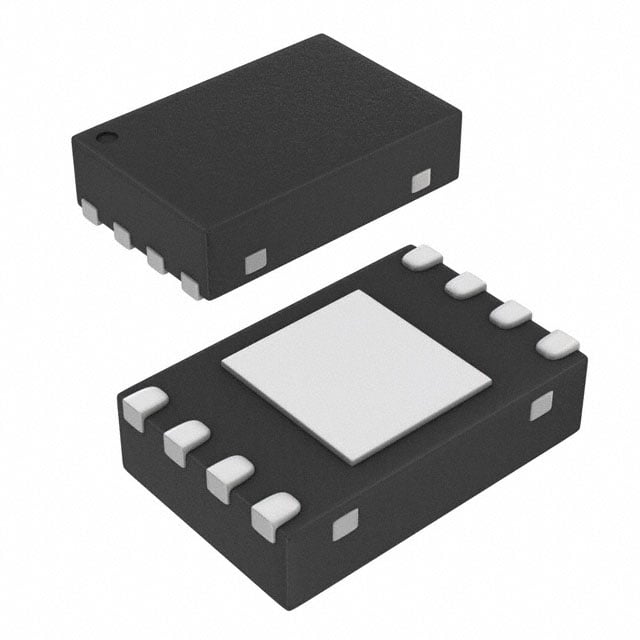

TUSB501TDRFRQ1 TI USB Redriver | 8-WSON (2x2) | 5Gbps, 1.8V

Product Overview

The TUSB501TDRFRQ1 is a single-channel USB 3.0 redriver from Texas Instruments, designed to extend signal integrity over longer PCB traces or cable lengths. It supports SuperSpeed USB (5 Gbps) and is compliant with USB 3.0 and USB 3.1 Gen 1 standards. The device features programmable equalization and output swing to compensate for channel loss, making it ideal for automotive and industrial applications. Housed in a compact 8-pin WSON (2x2 mm) package, it operates over a wide temperature range of -40°C to +105°C.

Detailed Technical Specifications

Key Features

• Supports USB 3.0 and USB 3.1 Gen 1 (5 Gbps)
• Programmable equalization and output swing
• Low power consumption: 150 mW typical
• Auto-sleep and auto-wake for power saving
• Small footprint: 2x2 mm WSON package
• AEC-Q100 qualified for automotive applications

Target Applications

• Automotive infotainment systems (e.g., dashboard displays, head units)
• 5G base station control boards
• Industrial cameras and machine vision
• USB 3.0 docking stations and hubs
• Medical imaging equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TUSB501TDRFRQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TUSB501TDRFRQ1 是德州儀器（TI）推出的單通道 USB 3.0 中繼器，專為延長 PCB 走線或電纜長度上的信號完整性而設計。它支援超高速 USB（5 Gbps），符合 USB 3.0 和 USB 3.1 Gen 1 標準。該器件具有可編程均衡和輸出擺幅，以補償通道損耗，非常適合汽車和工業應用。採用緊湊的 8 引腳 WSON（2x2 mm）封裝，工作溫度範圍為 -40°C 至 +105°C。

詳細技術參數

核心特性

• 支援 USB 3.0 和 USB 3.1 Gen 1（5 Gbps）
• 可編程均衡和輸出擺幅
• 低功耗：典型 150 mW
• 自動休眠和自動喚醒以節省功耗
• 小尺寸：2x2 mm WSON 封裝
• 通過 AEC-Q100 認證，適用於汽車應用

典型應用場景

• 汽車信息娛樂系統（例如儀表板顯示器、主機）
• 5G 基站控制板
• 工業相機和機器視覺
• USB 3.0 擴展塢和集線器
• 醫療成像設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TUSB501TDRFRQ1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
