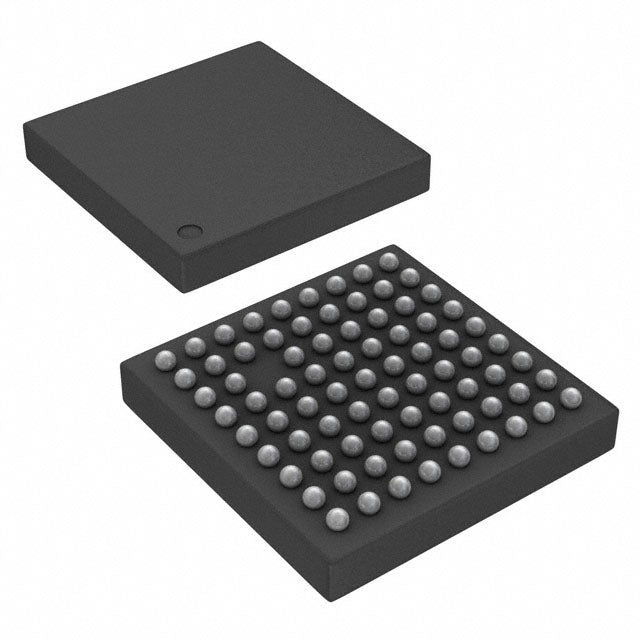

TUSB6015IZQE TI USB Controller | 80-BGAMICROSTARJUNIOR（5X5） | USB 2.0, ULPI
Default Title：$0.00
🧪 SAMPLE SUPPORT
✅ 100% Original & Traceable
🚀 Inquiry Today, Ship Today
🛡️ Escrow.com Secured Payment
Product Overview
The TUSB6015IZQE is a high-performance USB 2.0 On-The-Go (OTG) dual-role controller from Texas Instruments. It integrates a USB 2.0 OTG transceiver, a serial interface engine (SIE), and a ULPI (UTMI+ Low Pin Interface) interface, enabling seamless connectivity for portable devices. Housed in a compact 80-ball BGA MICROSTAR JUNIOR package (5x5 mm), it is ideal for space-constrained applications requiring high-speed data transfer and OTG functionality.
Detailed Technical Specifications
| Parameter | Value |
|---|---|
| USB Standard | USB 2.0 (High Speed 480 Mbps, Full Speed 12 Mbps, Low Speed 1.5 Mbps) |
| Interface | ULPI (UTMI+ Low Pin Interface) |
| OTG Support | Yes (Host/Peripheral negotiation) |
| Supply Voltage | 3.3V (I/O), 1.8V (Core) |
| Operating Temperature | -40°C to +85°C |
| Package | 80-BGA MICROSTAR JUNIOR (5x5 mm) |
| ESD Protection | ±8 kV (Contact), ±15 kV (Air) |
| Power Consumption | Typical 150 mW (active) |
Key Features
- Integrated USB 2.0 OTG transceiver and SIE
- ULPI interface for reduced pin count
- Supports Host Negotiation Protocol (HNP) and Session Request Protocol (SRP)
- Built-in charge pump for VBUS generation
- Low power consumption with suspend/resume modes
- Small footprint: 5x5 mm BGA package
- Industrial temperature range
Target Applications
- 5G base stations (for local device management via USB)
- Automotive dashboards (for smartphone connectivity)
- Portable media players
- Digital cameras and camcorders
- Tablets and e-readers
- Industrial handheld terminals
Global Supply Chain & Wholesale Solutions
At Jasin Chip, we provide professional supply chain and wholesale solutions for TUSB6015IZQE. Our core advantages include:
- 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
- In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
- HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
- Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
- BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.
Quality Assurance & Compliance
Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.
- 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
- RoHS Compliant: All electronic components comply with international environmental and safety standards.
- Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
產品概述
TUSB6015IZQE 是德州儀器推出的高性能 USB 2.0 On-The-Go (OTG) 雙角色控制器。它集成了 USB 2.0 OTG 收發器、串行接口引擎 (SIE) 和 ULPI (UTMI+ Low Pin Interface) 接口，為便攜設備提供無縫連接。採用緊湊的 80 球 BGA MICROSTAR JUNIOR 封裝 (5x5 mm)，非常適合需要高速數據傳輸和 OTG 功能的空間受限應用。
詳細技術參數
| 參數 | 數值 |
|---|---|
| USB 標準 | USB 2.0 (高速 480 Mbps, 全速 12 Mbps, 低速 1.5 Mbps) |
| 接口 | ULPI (UTMI+ Low Pin Interface) |
| OTG 支持 | 是 (主機/外設協商) |
| 供電電壓 | 3.3V (I/O), 1.8V (核心) |
| 工作溫度 | -40°C 至 +85°C |
| 封裝 | 80-BGA MICROSTAR JUNIOR (5x5 mm) |
| ESD 保護 | ±8 kV (接觸), ±15 kV (空氣) |
| 功耗 | 典型 150 mW (工作狀態) |
核心特性
- 集成 USB 2.0 OTG 收發器和 SIE
- ULPI 接口減少引腳數量
- 支持主機協商協議 (HNP) 和會話請求協議 (SRP)
- 內置充電泵用於 VBUS 生成
- 低功耗，支持掛起/恢復模式
- 小尺寸：5x5 mm BGA 封裝
- 工業級溫度範圍
典型應用場景
- 5G 基站 (通過 USB 進行本地設備管理)
- 汽車儀表板 (智能手機連接)
- 便攜式媒體播放器
- 數碼相機和攝像機
- 平板電腦和電子閱讀器
- 工業手持終端
環球供應鏈與批發合作夥伴方案
在 Jasin Chip，我們為 TUSB6015IZQE 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：
- 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
- 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
- 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
- Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
- BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。
品質保證與合規
Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。
- 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
- 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
- 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。
以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
