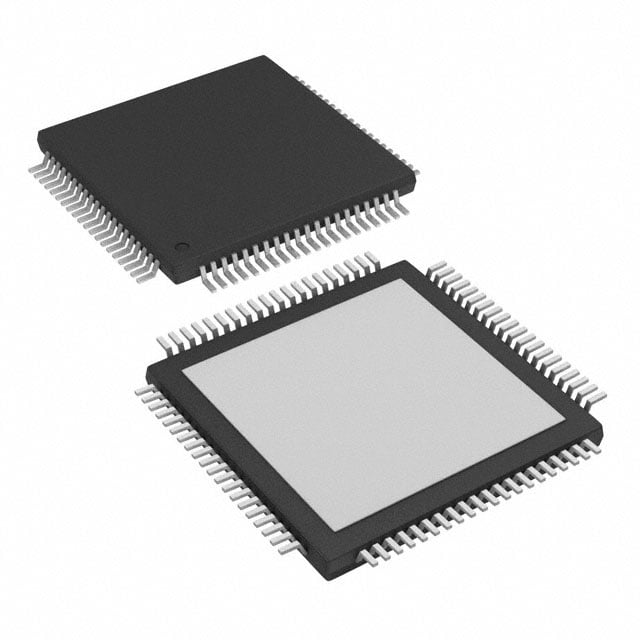

TVP5146PFP TI Video Decoder | 80-HTQFP (12x12) | 10-Bit, 4-Ch, NTSC/PAL

Product Overview

The TVP5146PFP is a high-performance, single-chip digital video decoder from Texas Instruments. It converts analog composite video signals (NTSC, PAL, SECAM) into digital component video data. Housed in an 80-pin HTQFP package (12x12 mm), it integrates four 10-bit ADCs, automatic gain control, and a comb filter for superior image quality. Ideal for automotive, surveillance, and broadcast applications.

Detailed Technical Specifications

Key Features

• Four 10-bit ADCs with analog pre-processing
• Automatic gain control (AGC) and clamp control
• Built-in comb filter for luminance/chrominance separation
• Supports Macrovision copy protection detection
• I2C host interface for configuration
• Low power consumption (300 mW typical)
• Small footprint 80-HTQFP package

Target Applications

• Automotive: Rearview camera systems, dashcams, infotainment displays
• Surveillance: DVRs, IP cameras, video capture cards
• Broadcast: Video processing equipment, set-top boxes
• Industrial: Machine vision, medical imaging

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TVP5146PFP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TVP5146PFP 是德州儀器（TI）推出的一款高性能單芯片數字視頻解碼器。它將模擬複合視頻信號（NTSC、PAL、SECAM）轉換為數字分量視頻數據。採用 80 引腳 HTQFP 封裝（12x12 mm），集成四個 10 位 ADC、自動增益控制和梳狀濾波器，提供卓越的圖像質量。適用於汽車、安防和廣播應用。

詳細技術參數

核心特性

• 四個 10 位 ADC，帶模擬預處理
• 自動增益控制（AGC）和鉗位控制
• 內置梳狀濾波器，實現亮度/色度分離
• 支持 Macrovision 複製保護檢測
• I2C 主機接口用於配置
• 低功耗（典型 300 mW）
• 小尺寸 80-HTQFP 封裝

典型應用場景

• 汽車：倒車攝像頭系統、行車記錄儀、信息娛樂顯示
• 安防：DVR、IP 攝像機、視頻採集卡
• 廣播：視頻處理設備、機頂盒
• 工業：機器視覺、醫療成像

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TVP5146PFP 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
