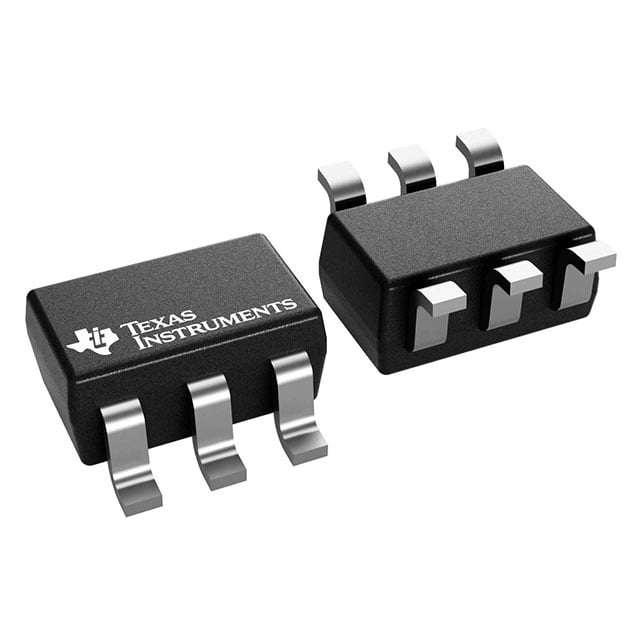

TXS0101DCKT TI Level Translator | SC-70-6 | 1.65-3.6V, 24Mbps

Product Overview

The TXS0101DCKT from Texas Instruments is a 1-bit bidirectional voltage-level translator designed for open-drain and push-pull applications. It operates over a wide voltage range from 1.65V to 3.6V on both the A and B ports, making it ideal for interfacing between different voltage domains in mixed-voltage systems. The device supports data rates up to 24 Mbps and comes in a compact SC-70-6 package, suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Bidirectional voltage translation without direction control
• Wide supply voltage range: 1.65V to 3.6V
• High data rate: up to 24 Mbps
• Low quiescent current: 1.5 µA typical
• Small SC-70-6 package saves board space
• ESD protection exceeds JESD 22

Target Applications

The TXS0101DCKT is ideal for applications requiring voltage level translation, such as:

• 5G base station control interfaces (e.g., translating 1.8V to 3.3V for FPGA configuration)
• Automotive dashboard displays (e.g., connecting 1.8V sensor to 3.3V MCU)
• Industrial sensor networks (e.g., I2C bus level shifting)
• Portable electronics (e.g., battery management systems)
• IoT modules (e.g., interfacing low-power sensors with host processors)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TXS0101DCKT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
