TXS0101YZPR TI Level Translator | 6-DSBGA | 1.65V-3.6V, 24Mbps

Product Overview

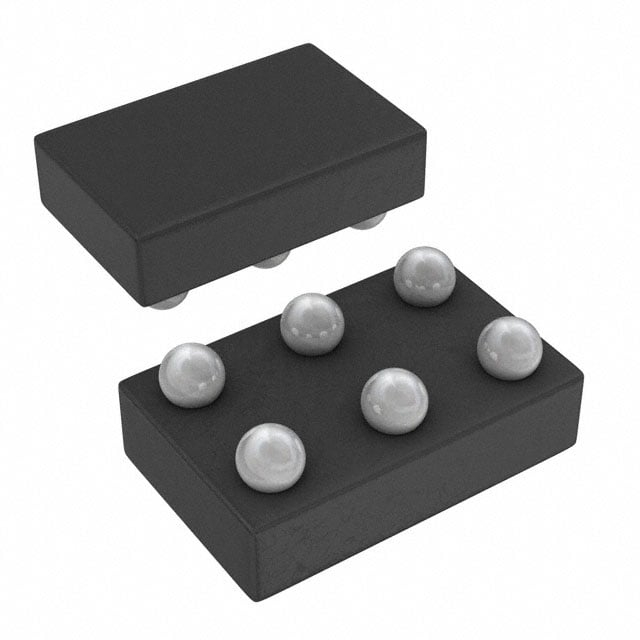

The TXS0101YZPR from Texas Instruments is a 1-bit bidirectional voltage-level translator designed for open-drain and push-pull applications. It operates over a wide voltage range from 1.65V to 3.6V on the VCCA side and 2.3V to 5.5V on the VCCB side, making it ideal for interfacing between different logic levels. The device supports data rates up to 24 Mbps and is housed in a compact 6-DSBGA package (0.9mm x 1.4mm). Its auto-direction sensing eliminates the need for a direction control pin, simplifying design.

Detailed Technical Specifications

Key Features

• Bidirectional voltage translation without direction control
• Supports open-drain and push-pull applications
• High data rate up to 24 Mbps
• Ultra-small 6-DSBGA package saves board space
• Low quiescent current (1.5 µA) for power-sensitive designs
• ESD protection exceeds JESD 22 standards

Target Applications

The TXS0101YZPR is ideal for level translation in various systems, including:

• 5G base stations: Interfacing between 1.8V baseband logic and 3.3V RF control signals
• Automotive dashboards: Connecting 3.3V microcontroller to 5V display modules
• Industrial sensors: Translating 1.8V sensor outputs to 3.3V PLC inputs
• Portable electronics: Battery-powered devices requiring low power and small footprint
• IoT gateways: Bridging 1.8V wireless modules with 3.3V host processors

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TXS0101YZPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
