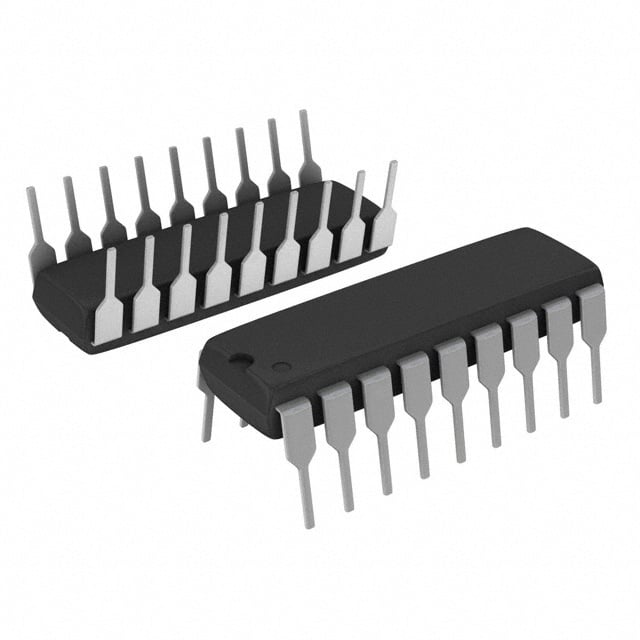

UC2526N TI PWM Controller | 18-PDIP | Dual Output, 500kHz

Product Overview

The UC2526N from Texas Instruments is a high-performance pulse-width modulation (PWM) controller designed for a wide range of power supply applications. It features dual output channels capable of driving power MOSFETs or bipolar transistors, with a maximum switching frequency of 500 kHz. The device operates from a supply voltage range of 7V to 40V and includes essential protection features such as undervoltage lockout (UVLO) and programmable dead-time control. Housed in an 18-pin PDIP package, the UC2526N offers a compact solution for efficient power conversion.

Detailed Technical Specifications

Key Features

• Dual output PWM controller with complementary outputs
• Wide supply voltage range: 7V to 40V
• High switching frequency up to 500 kHz
• Programmable dead-time for shoot-through protection
• Undervoltage lockout (UVLO) with hysteresis
• Soft-start capability
• Low startup current (typical 1 mA)
• 18-pin PDIP package for easy prototyping

Target Applications

• DC-DC converters for 5G base station power supplies
• Automotive dashboard power management
• Industrial power supplies for motor drives
• Telecom rectifiers and battery chargers
• LED lighting drivers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UC2526N. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
