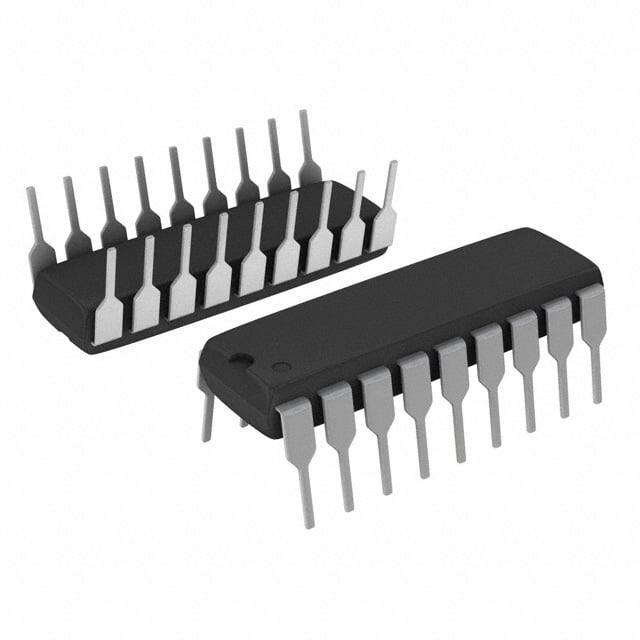

UC2544N TI Power Management IC | 18-PDIP | Dual PWM Controller, 40V

Product Overview

The UC2544N from Texas Instruments is a high-performance dual PWM controller designed for a wide range of power conversion applications. Housed in an 18-pin PDIP package, this IC integrates two independent PWM controllers with precise dead-time control, making it ideal for push-pull, half-bridge, and full-bridge topologies. The device operates from a supply voltage up to 40V and features undervoltage lockout, soft-start, and programmable oscillator frequency. Its robust design ensures reliable operation in demanding environments such as industrial power supplies, telecom equipment, and automotive systems.

Detailed Technical Specifications

Key Features

• Dual independent PWM controllers with common oscillator
• Programmable dead-time control for each output
• Wide supply voltage range: 8V to 40V
• High peak output current: ±1A
• Undervoltage lockout with hysteresis
• Soft-start and shutdown control
• Low startup current: 1mA typical
• Thermal shutdown protection

Target Applications

• Industrial power supplies (e.g., 48V DC-DC converters for factory automation)
• Telecom base stations (e.g., 5G remote radio unit power modules)
• Automotive systems (e.g., electric vehicle onboard chargers)
• Server and data center power supplies (e.g., 12V to 48V intermediate bus converters)
• LED lighting drivers (e.g., high-power street lighting)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UC2544N. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
