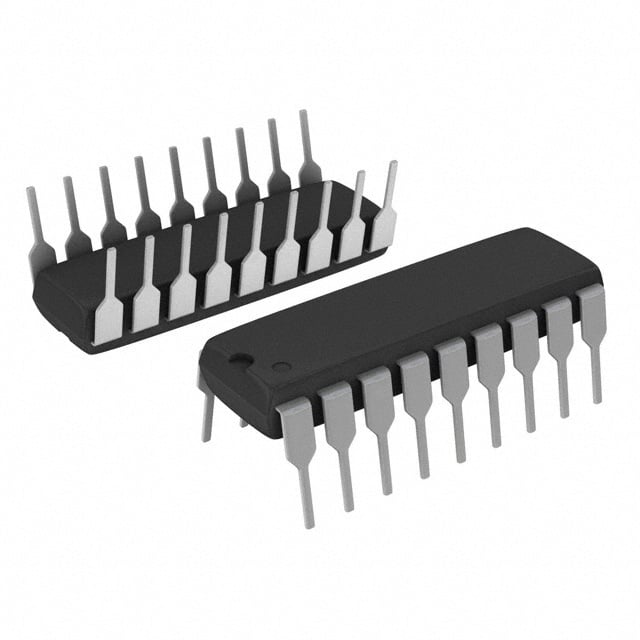

UC2637N TI Motor Driver | 18-PDIP | 36V, 2A

Product Overview

The UC2637N from Texas Instruments is a high-performance quad DMOS full-bridge driver designed for bipolar stepper motor or bidirectional DC motor control. Housed in an 18-pin PDIP package, it integrates four independent half-bridge drivers capable of delivering up to 2A continuous output current per channel with a supply voltage range of 10V to 36V. The device features built-in protection diodes, thermal shutdown, and cross-conduction prevention, making it ideal for industrial and automotive applications requiring robust motor control.

Detailed Technical Specifications

Key Features

• Quad DMOS full-bridge driver for stepper or DC motors
• 2A continuous output current per channel (3A peak)
• Wide supply voltage range: 10V to 36V
• Built-in protection diodes for inductive loads
• Thermal shutdown and undervoltage lockout
• Cross-conduction prevention logic
• 3.3V/5V logic compatible inputs
• Industry-standard 18-PDIP package for easy prototyping

Target Applications

• Industrial automation: CNC machines, robotic arms (e.g., ABB IRB 120)
• Automotive: Electric seat adjusters, mirror actuators (e.g., Tesla Model 3 seat motors)
• Medical equipment: Infusion pumps, diagnostic scanners (e.g., Siemens SOMATOM CT scanner)
• Consumer electronics: 3D printers (e.g., Creality Ender 3), office automation printers
• Telecommunications: Antenna positioning systems for 5G base stations (e.g., Huawei AAU)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UC2637N. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
