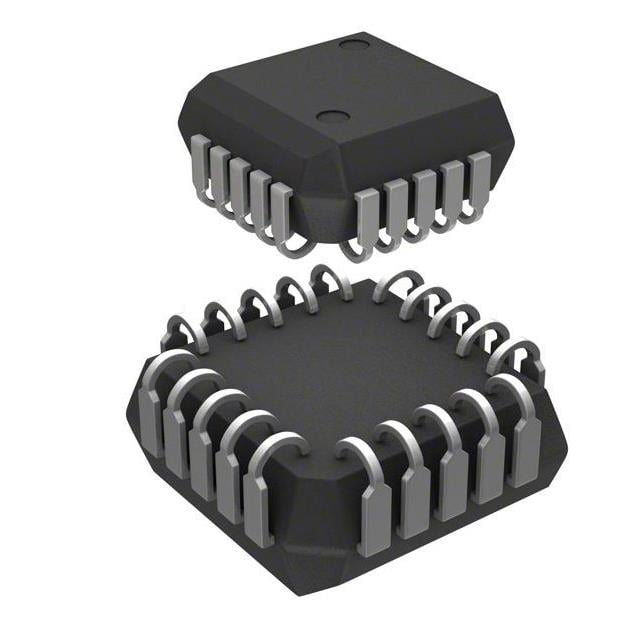

UC2825AQ TI PWM Controller | 20-PLCC (9x9) | 1MHz, 2A Peak Gate Drive

Product Overview

The UC2825AQ from Texas Instruments is a high-speed, current-mode PWM controller designed for off-line and DC-to-DC converter applications. Housed in a compact 20-PLCC (9x9 mm) package, it offers a wide input voltage range and precise control for efficient power conversion. With a maximum switching frequency of 1 MHz and a 2A peak gate drive capability, this device is ideal for high-density power supplies requiring fast transient response and low EMI.

Detailed Technical Specifications

Key Features

• High-frequency operation up to 1 MHz reduces transformer and filter size
• 2A peak gate drive for fast switching of power MOSFETs
• Precision 5V reference with ±1% accuracy
• Programmable soft-start and shutdown control
• Low startup current (150 µA typical)
• Current-mode control ensures excellent line and load regulation

Target Applications

• 5G base station power supplies (e.g., rectifier modules for remote radio units)
• Automotive dashboard power management (e.g., infotainment system DC-DC converters)
• Industrial power supplies (e.g., programmable logic controllers)
• Telecom and networking equipment (e.g., routers and switches)
• LED lighting drivers for high-brightness applications

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UC2825AQ. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
