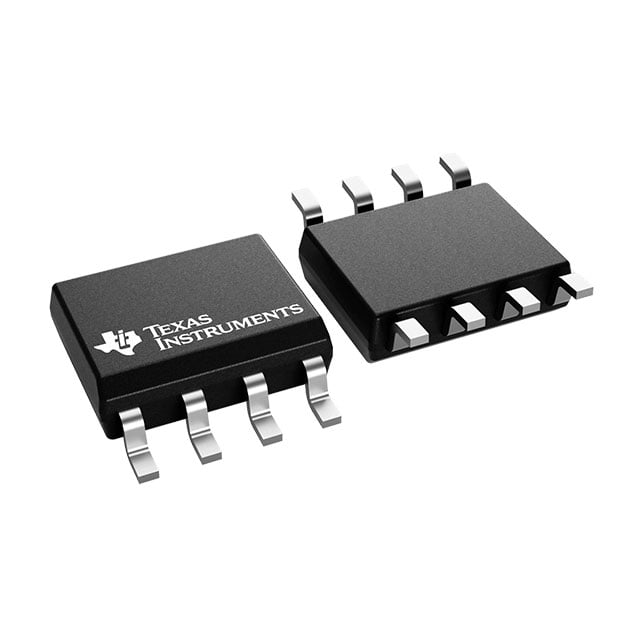

UC3843D8TR TI Current Mode PWM Controller | 8-SOIC | 8.4V/7.6V UVLO, 500kHz

Product Overview

The UC3843D8TR from Texas Instruments is a high-performance current mode PWM controller designed for off-line and DC-to-DC converter applications. It features an 8-SOIC package, providing a compact solution for power supply designs. The device operates with a supply voltage range from 7.6V to 30V and offers a switching frequency up to 500kHz. With under-voltage lockout (UVLO) thresholds of 8.4V (start) and 7.6V (stop), it ensures reliable startup and shutdown. The UC3843D8TR includes a trimmed oscillator for precise frequency control, a temperature-compensated reference, and a high-gain error amplifier. Its current mode architecture provides inherent pulse-by-pulse current limiting and improved transient response.

Detailed Technical Specifications

Key Features

• Current mode operation for improved transient response and simplified loop compensation
• Trimmed oscillator with precise frequency control
• Under-voltage lockout with hysteresis
• High-gain error amplifier
• Pulse-by-pulse current limiting
• Low startup current (typical 0.5 mA)
• Totem-pole output stage for high peak current drive

Target Applications

• AC-DC adapters and chargers for consumer electronics
• DC-DC converters for telecom and networking equipment (e.g., 5G base station power supplies)
• Industrial power supplies for automation systems
• LED lighting drivers
• Automotive power systems (e.g., infotainment, dashboard displays)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UC3843D8TR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
