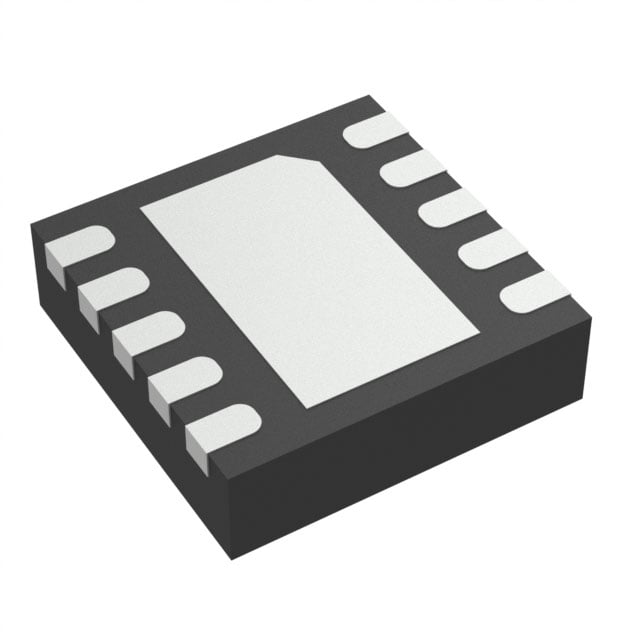

UCC27282DRCT TI Gate Driver | 10-VSON (3x3) | 4A Peak, 120V Bootstrap

Product Overview

The UCC27282DRCT is a high-frequency, high-voltage gate driver from Texas Instruments, designed to drive both high-side and low-side N-channel MOSFETs in half-bridge and full-bridge configurations. It features a 4A peak sink/source current capability and operates with a bootstrap supply voltage up to 120V DC. The device is housed in a compact 10-pin VSON (3x3 mm) package, making it ideal for space-constrained power conversion applications. With integrated shoot-through protection, UVLO on both VDD and HB, and 3.3V/5V input logic compatibility, the UCC27282DRCT simplifies design while ensuring robust performance.

Detailed Technical Specifications

Key Features

• 4A peak sink/source drive current for fast switching
• 120V bootstrap voltage rating for high-side drive
• Integrated shoot-through protection (dead-time)
• Under-voltage lockout (UVLO) on VDD and HB
• 3.3V and 5V input logic compatible
• Low propagation delay (18 ns typical)
• Small 10-pin VSON package (3x3 mm)
• Wide operating temperature range (-40°C to +140°C)

Target Applications

• 5G base station power supplies (e.g., rectifier modules)
• Automotive dashboard power management (e.g., DC-DC converters)
• Industrial motor drives (e.g., servo drives)
• Solar inverters (e.g., microinverters)
• Telecom and datacom power systems
• Battery charging systems (e.g., Li-ion chargers)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UCC27282DRCT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
