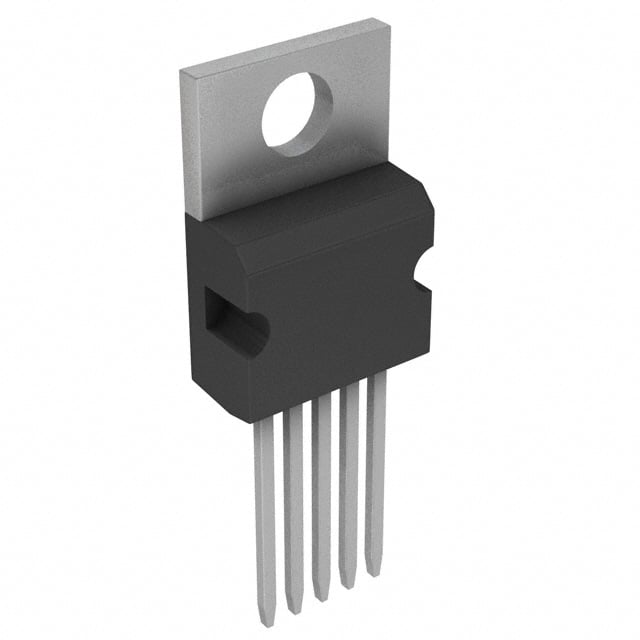

UCC561TD TI Active SCSI Terminator | TO-220-5 | 9-Line, 3.0-5.25V

Product Overview

The UCC561TD from Texas Instruments is a 9-line active SCSI terminator designed for high-performance SCSI bus termination. Housed in a TO-220-5 package, it provides precise voltage regulation and low output capacitance, ensuring signal integrity in fast SCSI systems. Operating over a supply range of 3.0V to 5.25V, it is ideal for both single-ended and differential SCSI applications.

Detailed Technical Specifications

Key Features

• Active termination for 9 SCSI lines
• Low output capacitance (10 pF) for high-speed operation
• Wide supply voltage range: 3.0V to 5.25V
• Precise output voltage regulation (2.85V typical)
• Thermal shutdown protection
• Industry-standard TO-220-5 package for easy mounting

Target Applications

• SCSI bus termination in servers and storage arrays
• High-speed data acquisition systems
• Industrial control interfaces
• 5G base station backplane termination
• Automotive infotainment and dashboard systems
